JCM 402-0450 X14IP 25-420

JCM service saddles provide a quick, dependable means of tapping pipe for branch connections of 1/2 to 2-1/2 in. Use of economical JCM service saddles eliminate problems common to direct taps, such as leaking threads or split pipe and reinforces the critical connection. High pressure performance is assured by the broad, pressure activated gasket. Permanently set in a retaining cavity, the contoured gasket produces a positive initial seal which increases with increase in line pressure. JCM service saddles are designed for maximum safety and performance. The wrap around design, wide skirt and wide straps support and reinforce the pipe while providing excellent stability to the saddle. The heavy-duty design of these saddles provides strength and mass for long term service. The JCM 402 saddles, with their wide bodies and large sealed outlet areas, provide an excellent means of repairing holes, pin holes and leaking 3/4 in and 1 in direct taps.

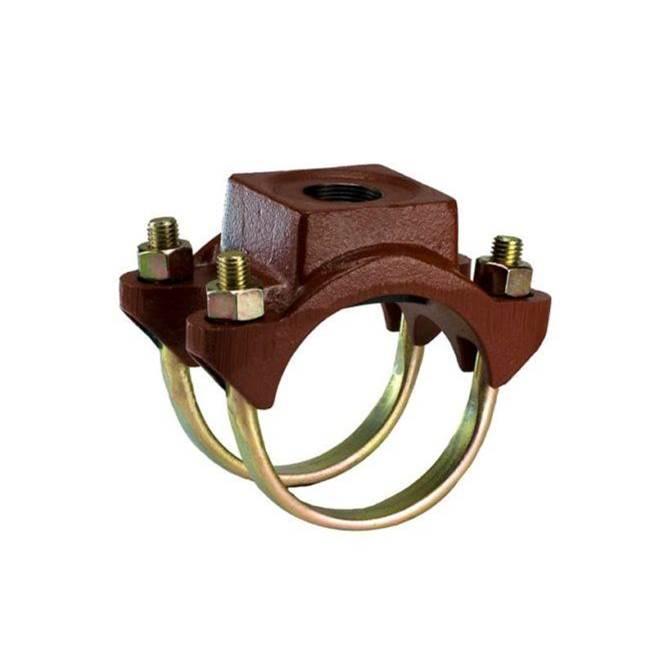

JCM Double Strap Service Saddle, 400 Series, Saddle Fitting, 2 in Outlet Branch, IPS Branch Connection, 4 in Run Pipe, Iron, Material Construction: Iron, Finish: Primer, Additional Information: 4-1/4 to 4-1/2 in OD Pipe

• Heavy threaded outlet - with IPS or CC threads reinforces the critical connection
• Broad pressure activated gasket - for low and high pressure performance
• Corrosion-resistant coating - for long term service
• Wide straps - increase the load bearing area of the straps
• Wide body wrap around design - support and reinforce the pipe and provide excellent stability
• Heavy-duty design - provides strength and mass for long term service
• Closed canted ears - for extra protection against electrolysis and maximum strap bearing

• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/JCM-10820937_InstallSheet.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/JCM-10821156_SpecSheet.pdf
