Rain Bird® B0690008 76A-2045A08
  1. pin-int

Rain Bird® B0690008 76A-2045A08

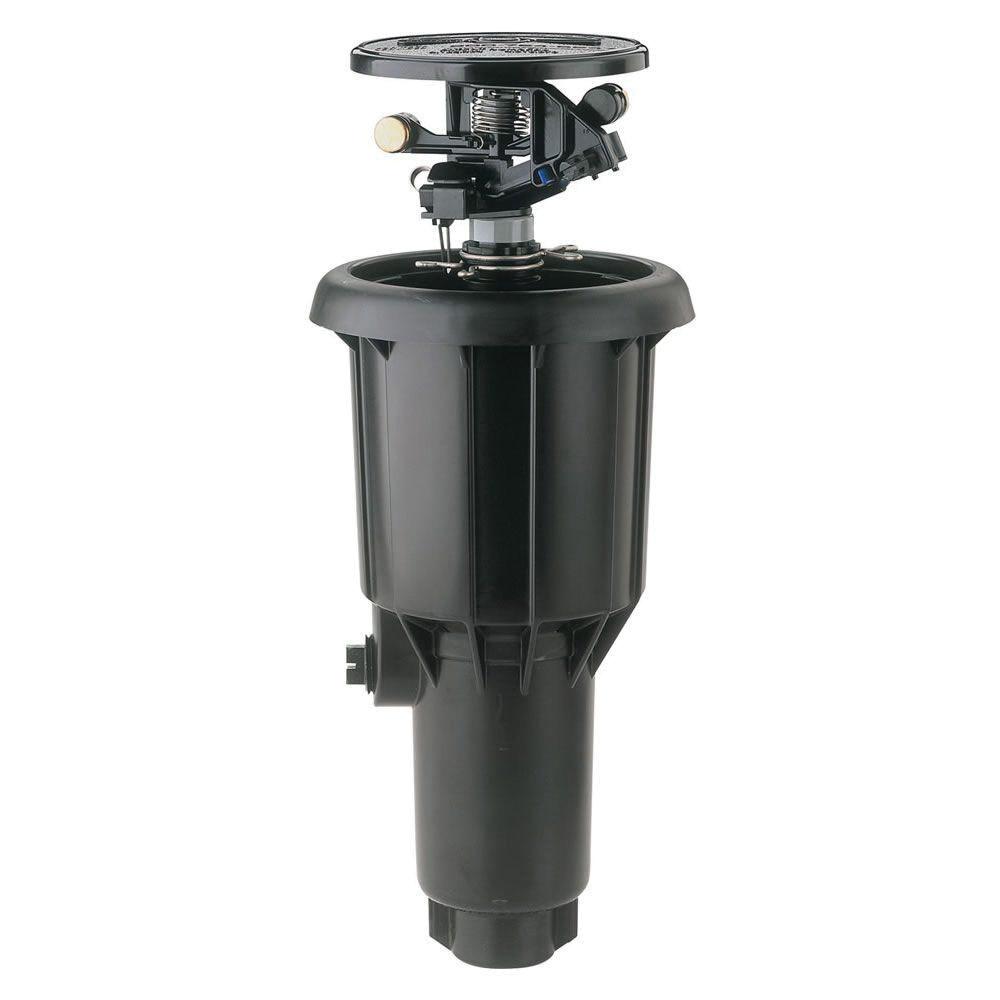

Rain Bird® Maxi-Paw Series B0690008 Impact Sprinkler, 1/2 x 3/4 in, FPT, Plastic

  • Manufacturer: Rain Bird
  • Brand Name: Rain Bird®
  • Part#: 76A-2045A08
  • MPN: B0690008
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

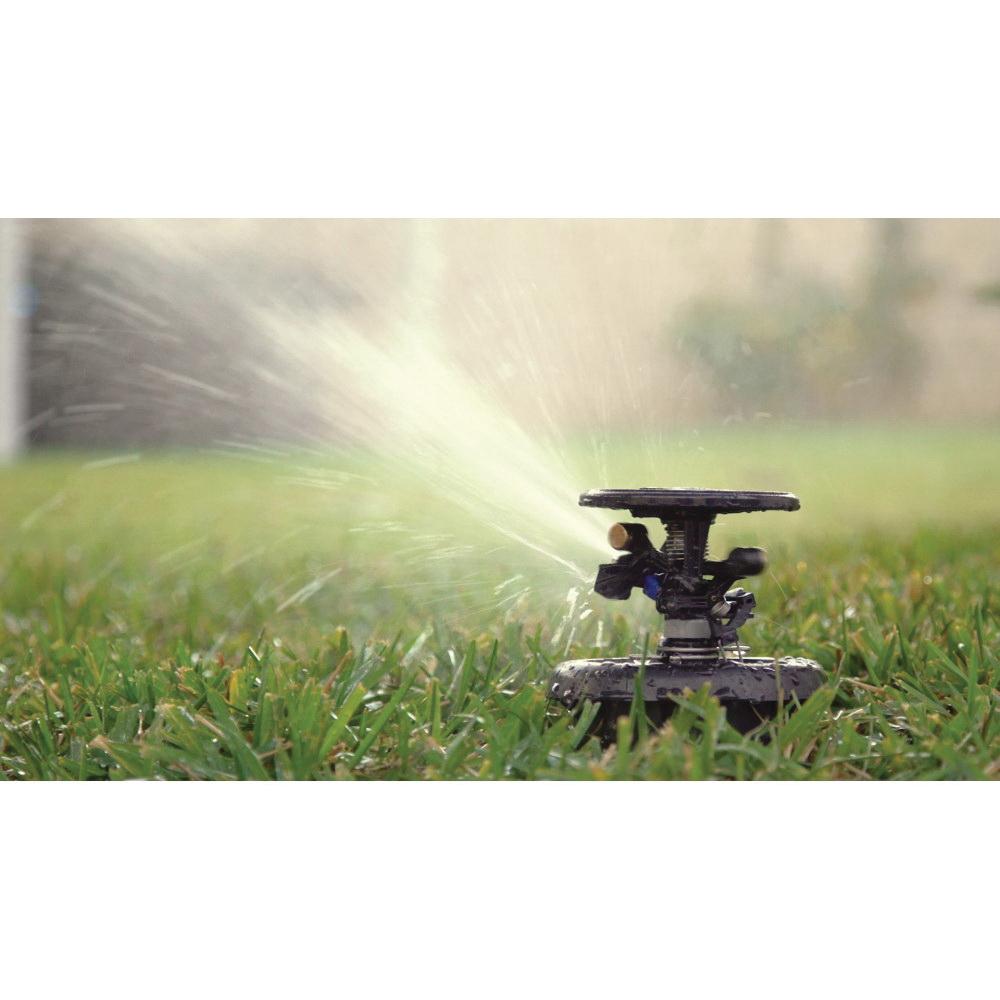

The Maxi-Paw's powerful throw permits maximum spacing and offers superior close-in watering and uniform water distribution. Low-pressure loss and an efficient, straight through flow design conserve energy and are ideal for dirty water applications.

Rain Bird® Impact Sprinkler, Maxi-Paw Series, Adjustable, Full-Circle, Part-Circle Spray Pattern, 25 to 60 psi, 1.5 to 8.4 gpm Flow Rate, 1/2 x 3/4 in Connection, FPT Connection, Plastic, 9-3/10 in Overall Height

SPECIAL_ORDER_ITEM      :      N
Special Order Item      :      N
  • Five standard trajectory and two low angle color-coded nozzles for matched precipitation in a wide range of applications
  • 360 deg full circle or arc adjustable from 20 to 340 deg
  • Side and combination 1/2 or 3/4 in bottom inlet for design flexibility
  • Easy-to-adjust, Easy-to-service
  • No tools required to change nozzles
  • Heavy-duty plastic case with sturdy, reinforced ribbed design
  • Double-weighted arm for slower rotation and increased distance of throw
  • Self-flushing inner trip with improved inner trip lever
  • Powerful reverse action
  • Adjustable arm spring for low-pressure and low gallon age operation
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Rain_Bird_B0690008_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/TzSk5E9tDq4
