NDS® 9302 86G-9302
  1. pin-int

NDS® 9302 86G-9302

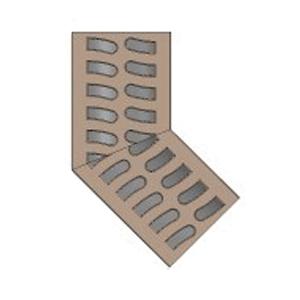

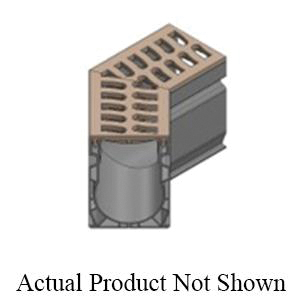

NDS® 9302 Slim Channel Fabricated Elbow With Slotted Grate, 45 deg, Polypropylene/PVC

  • Manufacturer: NORMA Group
  • Brand Name: NDS®
  • Part#: 86G-9302
  • MPN: 9302
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

NDS® slim channel fabricated 45 deg elbow with grate works with NDS® slim channel system. The NDS® slim channel features 6 ft L, 2-1/4 in W extruded PVC channel drain ideal for use in residential outdoor living areas such as pools, spas and patios.

NDS® Slim Channel Fabricated Elbow With Slotted Grate, 45 deg Angle, Polypropylene/PVC, Sand, 5.8 in Overall Length, 3.2 in Overall Width, 3-1/8 in Overall Height, For Use With: NDS® Slim Channel Systems, Additional Information: Flat-Style, Low Capacity

Additional Information      :      Flat-Style, Low Capacity
Angle      :      45 deg
Color      :      Sand
Material      :      Polypropylene/PVC
Overall Height      :      3-1/8 in
Overall Length      :      5.8 in
Overall Width      :      3.2 in
Special Order Item      :      N
Suitable For Use With      :      NDS® Slim Channel Systems
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/NDS_532_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/NDS_9301_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/cKpS4E17_34
  • linkVideo Link https://youtu.be/fyEtGvVN_hw
