NDS® 8001 86G-8001
  1. pin-int

NDS® 8001 86G-8001

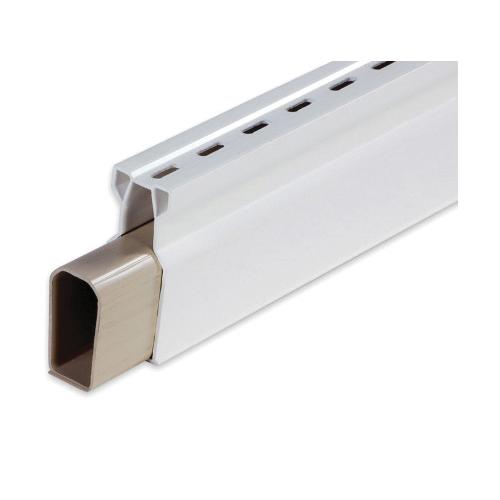

NDS® 8001 Micro Channel Drain, 10 ft L, 1-1/4 in W, 3-1/4 in D, PVC Drain

  • Manufacturer: NORMA Group
  • Brand Name: NDS®
  • Part#: 86G-8001
  • MPN: 8001
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

Excellent performance at lowest possible cost. Designed for residential applications including swimming pools, spas and patios. Unique design features grate openings parallel to channel length and recessed grate for strength and effective runoff capture.

NDS® Micro Channel Drain, 10 ft Length, 1-1/4 in Width, 3-1/4 in Depth, PVC Drain, White Drain, Additional Information: 1 sq-in/ft Surface Area, 3.06 gpm Flow Rate, 3/16 x 5/8 in Opening

Additional Information      :      1 sq-in/ft Surface Area, 3.06 gpm Flow Rate, 3/16 x 5/8 in Opening
Depth      :      3-1/4 in
Drain Color      :      White
Drain Material      :      PVC
Length      :      10 ft
Special Order Item      :      N
Width      :      1-1/4 in
  • Includes (1) coupling
