Sta-Rite P43B0015A2-01-C 58-P43B0015A2
  1. pin-int

Sta-Rite P43B0015A2-01-C 58-P43B0015A2

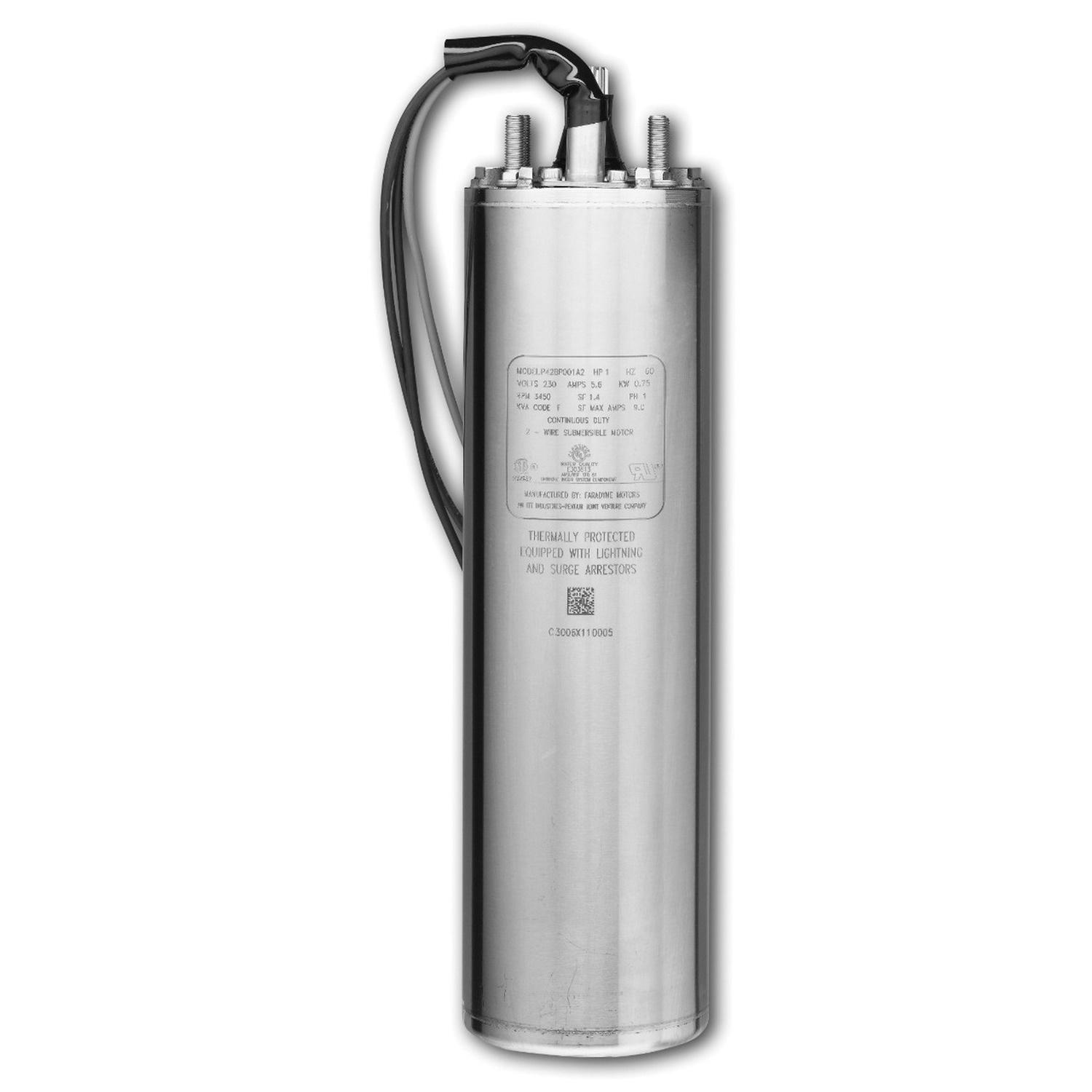

Sta-Rite XE Series P43B0015A2-01-C Submersible Motor, 1-1/2 hp, 1 ph Phase, 230 V, 49 A

  • Manufacturer: Pentair
  • Brand Name: Sta-Rite
  • Part#: 58-P43B0015A2
  • MPN: P43B0015A2-01-C
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

The Pentek® XE Series 4 in submersible high-thrust motors are built with the latest design, manufacturing and testing technology. They feature laser-welded 304L stainless steel construction, higher thrust capacities and higher efficiencies. The Pentek® XE Series submersible motors incorporate "encapsulated, epoxy stator design," and professional-grade Class F insulation provides longer life in harsh environments. Each motor is 100% factory pressure and run tested to support our quality standards.

Sta-Rite Submersible Motor, XE Series, 1-1/2 hp, 230 V, 49 A, 1.1 kW, 1 ph Phase, 60 Hz, 3-3/4 in Overall Diameter, 13.6 in Overall Length, Thrust Bearing, 86 deg F, 304 Stainless Steel Body, Additional Information: 700 lb Capacity

SPECIAL_ORDER_ITEM      :      N
Special Order Item      :      N
  • #700 rated Kingsbury-type thrust bearings are standard on all HPs, allowing for higher thrust loads, providing many years of trouble-free service under sever-duty operation
  • Two-wire permanent split capacitor design insures quiet operation and improved operating efficiency
  • All stainless steel exterior
  • Professional-grade Class F compliant motor insulation allows for longer service life
  • 100% factory pressure and run tested
  • Equipped with surge arrestor
  • Automatic thermal protection on 1/2 thru 1 hp models
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Sta_Rite_P42B0005A1_01_C_Specification_Sheet.pdf
