Rain Bird® PS310002 76A-PSR220IC
  1. pin-int

Rain Bird® PS310002 76A-PSR220IC

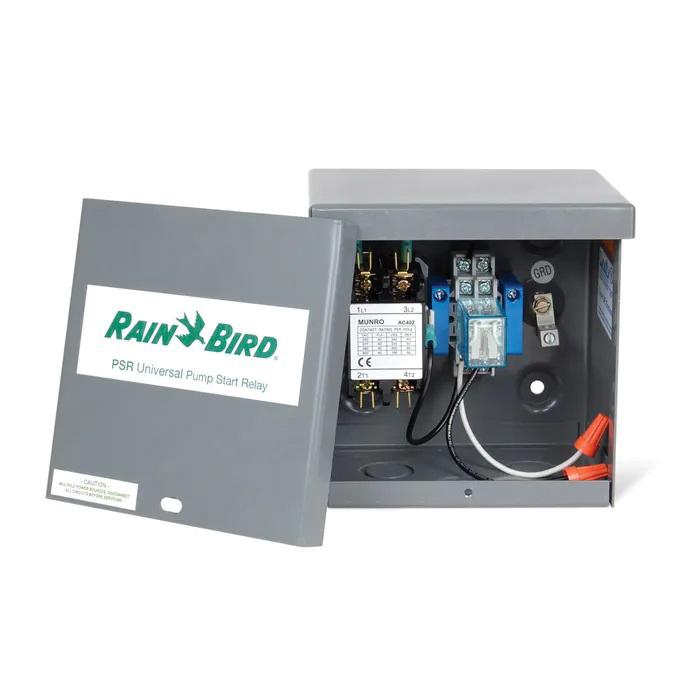

Rain Bird® PS310002 PSR Universal Pump Start Relay, 220 V, 40 A

  • Manufacturer: Rain Bird
  • Brand Name: Rain Bird®
  • Part#: 76A-PSR220IC
  • MPN: PS310002
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

Rain Bird® pump start relays work with a lawn controller's start/stop command to facilitate the electrical path from the breaker box to the pump motor. Rain Bird® PSR universal pump start relays provide "pilot-duty" operation for all types of electrically driven pump equipment.

Rain Bird® PSR Universal Pump Start Relay, 220 V, 40 A, Gray, For Use With: 220 V 3/4 to 5 hp Single Phase Pumps and 24 VAC Timed Lawn Controllers, 6 in H x 6 in W x 4 in D, Specifications: 120 V - 24 FLA, 240 V - 28 FLA Electrical Rating, 120 V - 2 hp, 240 V - 2 hp Largest Motor, 120 V - 5 kA Short Circuit Rating W/ICE CUBE RELAY

SPECIAL_ORDER_ITEM      :      N
Special Order Item      :      N
  • Quick-connect terminals with wire nuts
  • Grounding provision
  • Gray "baked-on" powder coating, for long life in difficult environments
  • Housed in compact NEMA 3R weather-tight enclosures
