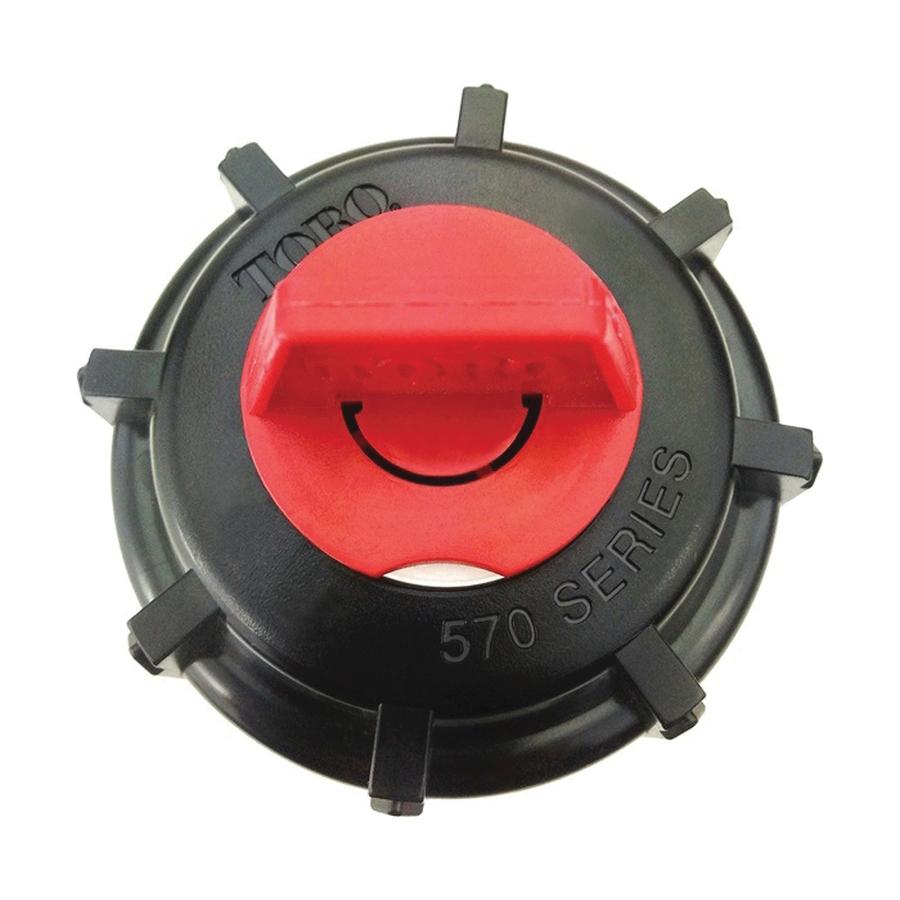

TORO® 570Z-6P PRX 75A-570Z-6P-PRX

TORO® 570Z Series spray heads provide everything needed for residential and commercial contractors to satisfy all installation and retrofit requirements. In combination with TORO® spray and rotating nozzles, 570Z Series spray heads can be configured in hundreds of combinations and present an unparalleled range of flexibility. Available in 2 in, 3 in, 4 in, 6 in and 12 in models with both bottom and side inlet thread options, TORO® 570Z Series spray heads are further available with patented in-stem X-Flow technology and pressure regulating water saving features.

TORO® Pop-Up Spray Head, 570Z Series, 6 in Pop-Up Height, 1/2 in Inlet, FNPT Connection, 2 to 26 ft Radius, 20 to 75 psi Operating Pressure, 0.05 to 4.5 gpm Flow Rate, 1-3/8 in Body Height, 2 in Cap Diameter, Additional Information: Pressure Regulator with XF Technology

• Zero flush wiper seal prevents flushing on pop-up, allowing more sprinklers on the same line
• One-piece check valve easily installed at the factory or in the field, maintains up to 10 ft elevation change
• Ratcheting riser quick and precise arc adjustment on all pop-up models
• Corrosion-resistant stainless steel retraction spring
• All models shipped with installed flush plug
• With pressure regulation factory installed pressure regulator eliminates water misting and fogging at the nozzle that can lead to rapid evaporation or water being blown away from the intended irrigation area
• With patented X-Flow technology the X-Flow in stem flow shut-offs device is built into the riser and restricts water loss by 99% should the nozzle be removed or damaged

• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/TORO_570Z4PPRX_Instruction_Installation_Manual.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/TORO_570Z4PPRX_Specification_Sheet.pdf
