Sta-Rite DMMG SO-57A-DMMG
  1. pin-int

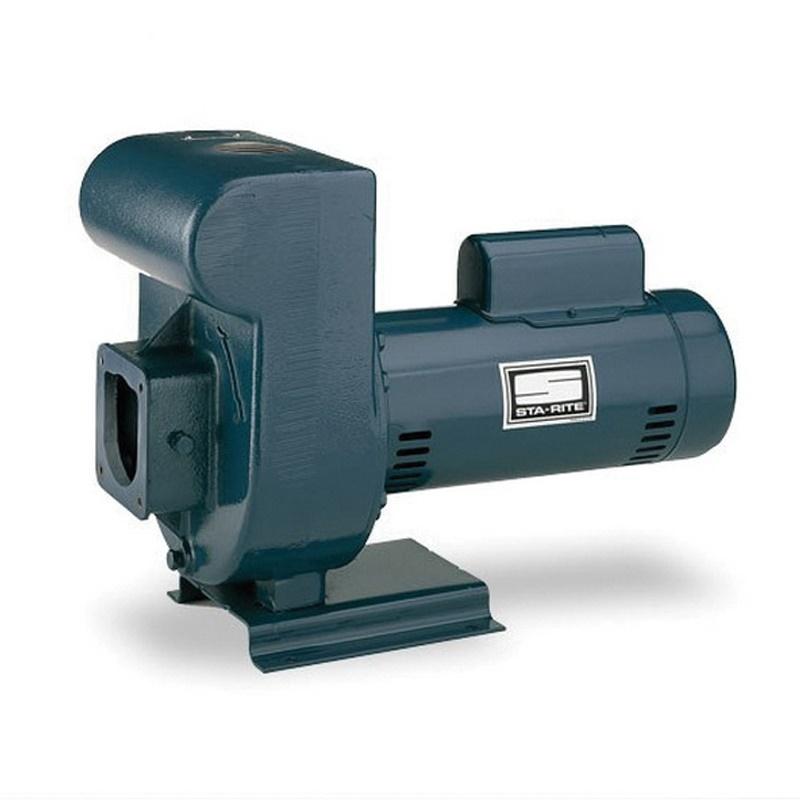

Sta-Rite DMMG SO-57A-DMMG

Sta-Rite D Series DMMG Medium Head Centrifugal Pump, 2-1/2 hp, 3 ph -Phase, 230 V, 2-1/2 in Inlet Connection, 60 gpm

  • Manufacturer: Pentair
  • Brand Name: Sta-Rite
  • Part#: SO-57A-DMMG
  • MPN: DMMG
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

Available in high head or medium head series (high head in separate listing). Feature leak-proof mechanical seals, easy service design, heavy-duty motors, rugged construction.

Sta-Rite Medium Head Centrifugal Pump, 230 V, 60 Hz, 2-1/2 hp, 3 ph Phase, 2-1/2 in Inlet Connection, 2 in Outlet Connection, 60 gpm Flow Rate, 100 psi Maximum Pressure, 25 ft Maximum Suction Lift, 3450 rpm, Noryl Impeller, 140 deg F, Ball Bearing, Iron Housing, 17-15/16 in Overall Length, 7-7/8 in Overall Width, 11-7/8 in Overall Height, Additional Information: NPT Suction and Discharge Connection, 20 psi Maximum Inlet Pressure, 104 deg F Maximum Ambient Air Temperature

Additional Information      :      NPT Suction and Discharge Connection, 20 psi Maximum Inlet Pressure, 104 deg F Maximum Ambient Air Temperature
Bearing Type      :      Ball
Flow Rate      :      60 gpm
Frequency Rating      :      60 Hz
Impeller Type      :      Noryl
Maximum Pressure      :      100 psi
Maximum Suction Lift      :      25 ft
Outlet Connection Size      :      2 in
Phase      :      3 ph
SPECIAL_ORDER_ITEM      :      Y
Series      :      D Series
Special Order Item      :      Y
Speed Rating      :      3450 rpm
Temperature Rating      :      140 deg F
Voltage Rating      :      230 V
  • Heavy-duty motors, easy service design and air volume control tapping
  • Drain port provided for easy winterizing
  • Normal wearing parts are easily accessible for service and replacement, without disturbing piping or mounting
