Rain Bird® A20000 SO-77C-RB70CH
  1. pin-int

Rain Bird® A20000 SO-77C-RB70CH

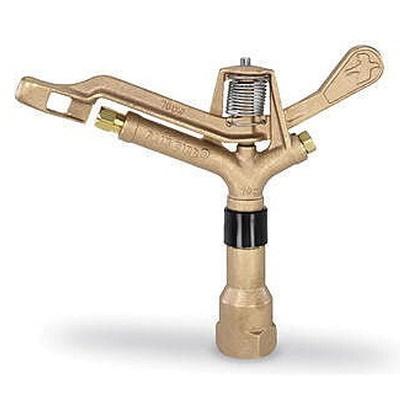

Rain Bird® 70CH Series A20000 Impact Sprinkler, 1 in, MNPT, Brass

  • Manufacturer: Rain Bird
  • Brand Name: Rain Bird®
  • Part#: SO-77C-RB70CH
  • MPN: A20000
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

The 70CH is designed for general field use and for use on mechanically moved systems, especially center pivot machines. Primarily uses on field crops, row crops, vegetables, nurseries, permanent systems, solid systems, portable systems and wheel lines.

Rain Bird® Impact Sprinkler, 70CH Series, Full-Circle Spray Pattern, 21 deg Trajectory Angle, 57 to 82 ft Coverage Area, 40 to 80 psi, 8.8 to 45.8 gpm Flow Rate, 1 in Connection, MNPT Connection, Brass, Additional Information: 3/8 in FNPT Nozzle

Coverage Area      :      57 to 82 ft
SPECIAL_ORDER_ITEM      :      Y
Special Order Item      :      Y
  • Full circle operation
  • Stainless steel springs and fulcrum pin
  • Chemical-resistant washers
  • Dual nozzle ports
  • Integral straightening vanes increase distance of throw
  • Back by 5 years customer satisfaction policy
  • For use with Rain Bird® SBN-4 straight bore nozzle, spreader nozzle port uses Rain Bird® LAN-1-20 and SPB-1 bushing, or brass plug
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Rain_Bird_A32901_10_Catalog.pdf
