Rain Bird® F22100 76A-ESPLXME2
  1. pin-int

Rain Bird® F22100 76A-ESPLXME2

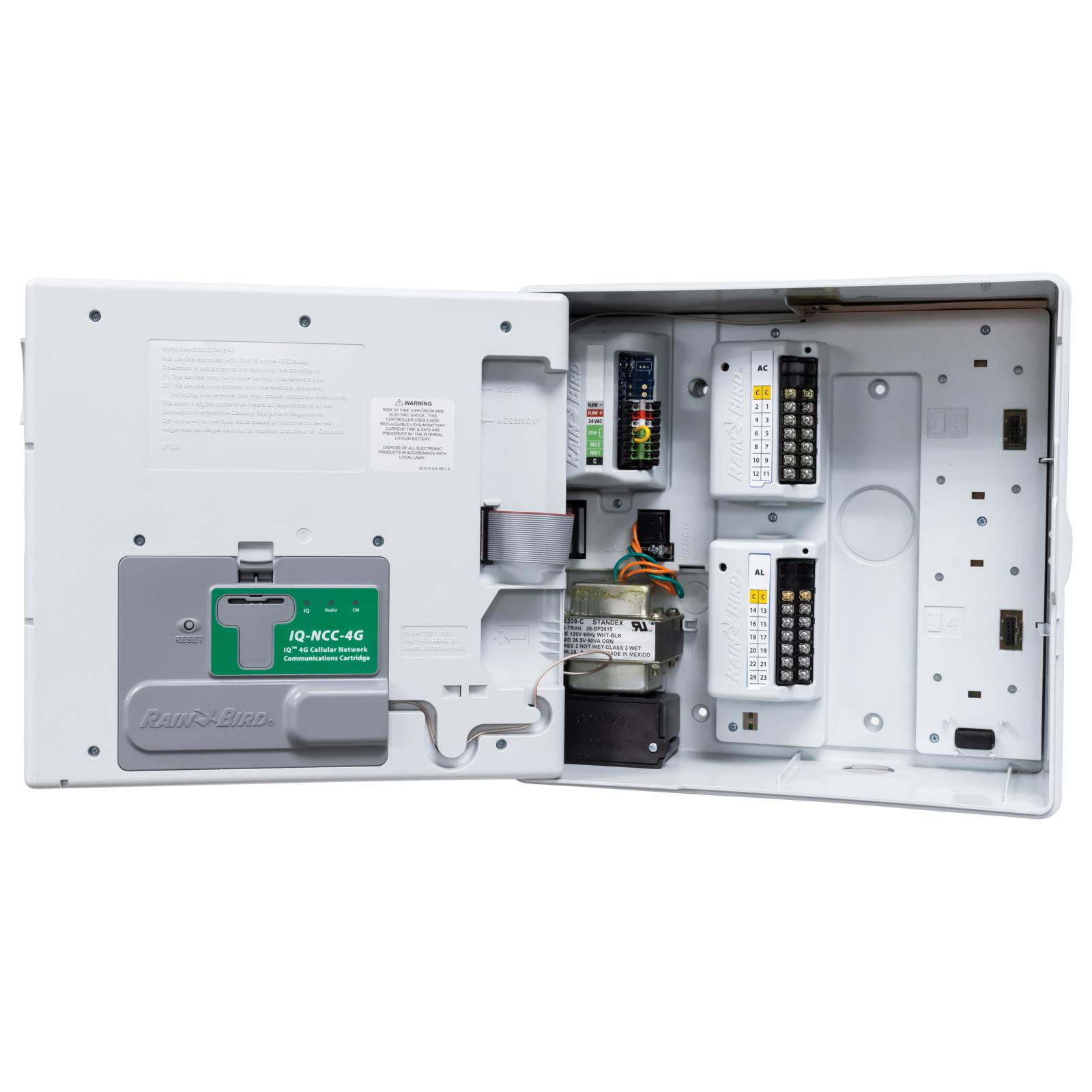

Rain Bird® ESP-LXME2 Series F22100 Modular Controller, 120 V, 1.9 A, 12 -Station, Plastic

  • Manufacturer: Rain Bird
  • Brand Name: Rain Bird®
  • Part#: 76A-ESPLXME2
  • MPN: F22100
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

The popular Rain Bird® LXME Series commercial controllers have been upgraded now offering 40-programs, a large backlit LCD screen and simplified programming. The LXME2 is a fully modular controller allowing the user to customize station capacity from 12 to 48-stations and upgrade to the LXME2 pro by purchasing the pro controller or installing the pro smart module. The LXME2 pro gives the user access to one-flow sensor input, advanced flow management capabilities and a second MV2/P pump start output.

Rain Bird® Modular Controller, 120 V, 1.9 A, 12 Stations, LCD Display, Wall Mounting, 12.69 in Length, 14.32 in Width, 5-1/2 in Depth, Plastic

SPECIAL_ORDER_ITEM      :      N
Special Order Item      :      N
  • Easy upgrade from LXME to LXME2 by swapping the front panel
  • 12-stations base unit expandable to 48-stations with (4) 12-stations modules
  • Access a flow sensor and a second MV2/P booster pump start circuit or normally closed master valve by upgrading to the LXME2 pro
  • 40-programs allow for ultimate flexibility in irrigation scheduling
  • Large backlit LCD display with easy-to navigate soft key user interface
  • Copy and paste functions for easy programming of multiple stations
  • FloManager™ manages hydraulic demand, making full use of available water to shorten total watering time
  • SimulStations™ are programmable to allow up to five-stations to operate at the same time (Max two-SimulStations per station module)
  • Hot swappable modules, no need to power down the controller to add/remove modules
  • MV1 normally closed or normally open master valve/pump start circuit
  • Master valve delay and inter-station delay
  • Six-users selectable languages
  • The front panel is removable and programmable under battery power
  • Water windows by program plus manual MV water window
  • Weather sensor programmable by station to prevent or pause watering
