Sta-Rite JBHG SO-57A-JBHG

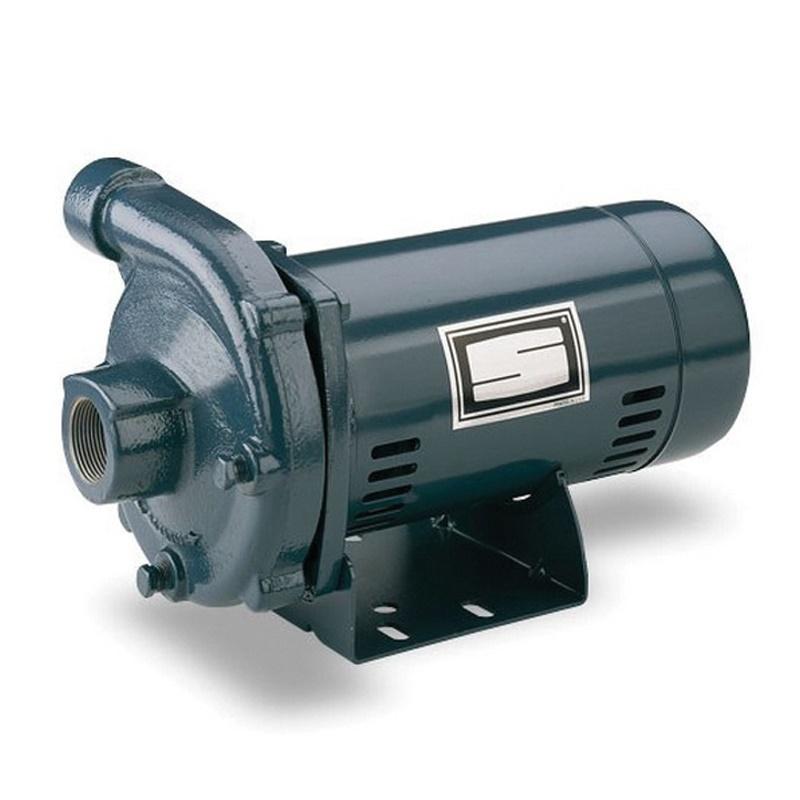

Sta-Rite JB Series JBHG General Purpose High Head Centrifugal Pump, 2 hp, 1 ph -Phase, 230 V, 1-1/2 in Inlet Connection
- Manufacturer: Pentair
- Brand Name: Sta-Rite
- Part#: SO-57A-JBHG
- MPN: JBHG
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
-
Available at All Branches
-
Price:
J/JB Series and other Sta-Rite centrifugal pumps can be ordered with TEFC motors and with other design characteristics. J Series with Noryl® impellers is abrasion-resistant for normal applications with working temperatures to 140 deg F. The JB Series includes a silicon bronze impeller and FKM seal for higher heat capacities.
Sta-Rite General Purpose High Head Centrifugal Pump, 230 V, 10.4 A, 60 Hz, 2 hp, 1 ph Phase, 1-1/2 in Inlet Connection, 1-1/4 in Outlet Connection, 100 gpm Flow Rate, 130 psi Maximum Pressure, 25 ft Maximum Suction Lift, 150 ft Maximum Head, TEFC Motor, Silicon Bronze Impeller, 225 deg F, Iron Housing, 16-3/4 in Overall Length, Additional Information: 60 psi Maximum Discharge Pressure
| Additional Information | : | 60 psi Maximum Discharge Pressure |
| Amperage Rating | : | 10.4 A |
| Flow Rate | : | 100 gpm |
| Frequency Rating | : | 60 Hz |
| Impeller Type | : | Silicon Bronze |
| Maximum Head | : | 150 ft |
| Maximum Pressure | : | 130 psi |
| Maximum Suction Lift | : | 25 ft |
| Motor Type | : | TEFC |
| Outlet Connection Size | : | 1-1/4 in |
| Phase | : | 1 ph |
| SPECIAL_ORDER_ITEM | : | Y |
| Series | : | JB Series |
| Special Order Item | : | Y |
| Temperature Rating | : | 225 deg F |
| Voltage Rating | : | 230 V |
- Drain port provides for easy winterizing
- Series delivers up to 140 ft of head, with flow rates up to 90 gpm
- Replaceable wear ring and simple back pull-out design provide easy serviceability
- Silicon bronze impellers and shaft seals (in JB series) allow use with water up to 125 deg F
