Spears® 5421A-020 SO-53-SP5421A020

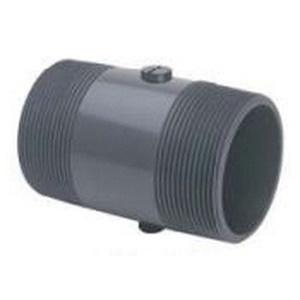

Spears® 5421A Series 5421A-020 Butterfly Check Valve, 2 in, Threaded, PVC
- Manufacturer: Spears Manufacturing
- Brand Name: Spears®
- Part#: SO-53-SP5421A020
- MPN: 5421A-020
- UPC: 054211892480
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
-
Available at All Branches
-
Price:
This multi-purpose check valve provides an extremely low profile and very quick response to back flow without slamming. Since most all components are internal, Spears® butterfly check valves require no more space than a piece of pipe and fitting. Special design incorporates flexible reinforced elastomer seal for long life and is suitable for mounting in any position for greater versatility. Can be custom produced to virtually any standard pipe diameter.
Spears® Butterfly Check Valve, 5421A Series, 2 in Nominal, Threaded Connection, 150 psi, 73 deg F, Water Media, 5-3/4 in Inlet to Outlet Length, PVC Body, EPDM Softgoods, Gray, Domestic/Import: Domestic
| Body Material | : | PVC |
| Color | : | Gray |
| Connection Type | : | Threaded |
| Domestic/Import | : | Domestic |
| Inlet to Outlet Length | : | 5-3/4 in |
| Media | : | Water |
| Nominal Size | : | 2 in |
| Pressure Rating | : | 150 psi |
| SPECIAL_ORDER_ITEM | : | Y |
| Series | : | 5421A Series |
| Softgoods Material | : | EPDM |
| Special Order Item | : | Y |
| Temperature Rating | : | 73 deg F |
- Chemical-resistant PVC and CPVC construction
- Without metal components
- Quick response shut-off in any position
- Replaceable internal components choice of reinforced EPDM or FKM
- Suitable for either horizontal or vertical installations
- Assembled with silicone-free, water soluble lubricant
Catalog
