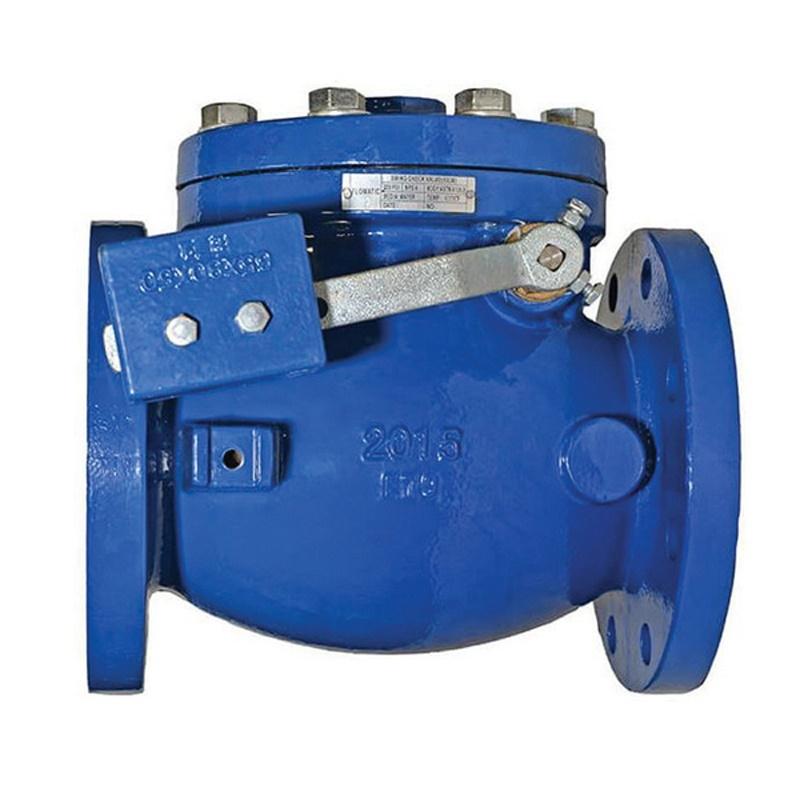

Flomatic® 2806LW SO-52B-030LW
Flomatic® 93LW Series 2806LW Swing Check Valve, 3 in, Flanged, Lead-Free, Iron
- Manufacturer: Flomatic Corporation
- Brand Name: Flomatic®
- Part#: SO-52B-030LW
- MPN: 2806LW
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
-
Available at All Branches
-
Price:
Swing check valve with outside lever and weight. Epoxy-coated ductile iron body. Flanged connection ANSI B16.1, class 150. Stainless steel seat and shaft. Resilient seal is standard. Imported, mainly for AG/Irrigation purposes, not municipal.
Flomatic® Swing Check Valve, 93LW Series, 3 in Nominal, Flanged Connection, 200 psi, Pressure Class: 150 lb, 180 deg F, 9-1/2 in Inlet to Outlet Length, 6.81 in Top to Inlet Center, Iron Body, Stainless Steel Seat, EPDM Disc, Stainless Steel Trim, Buna-N Softgoods, Lead-Free, Finish: Epoxy-Coated LEVER
| Body Material | : | Iron |
| Connection Type | : | Flanged |
| Disc Material | : | EPDM |
| Finish | : | Epoxy-Coated |
| Inlet to Outlet Length | : | 9-1/2 in |
| Lead-Free/Contains Lead | : | Lead-Free |
| Nominal Size | : | 3 in |
| Pressure Class | : | 150 lb |
| Pressure Rating | : | 200 psi |
| SPECIAL_ORDER_ITEM | : | Y |
| Seat Material | : | Stainless Steel |
| Series | : | 93LW Series |
| Softgoods Material | : | Buna-N |
| Special Order Item | : | Y |
| Temperature Rating | : | 180 deg F |
| Top to Inlet Center | : | 6.81 in |
| Trim Material | : | Stainless Steel |
