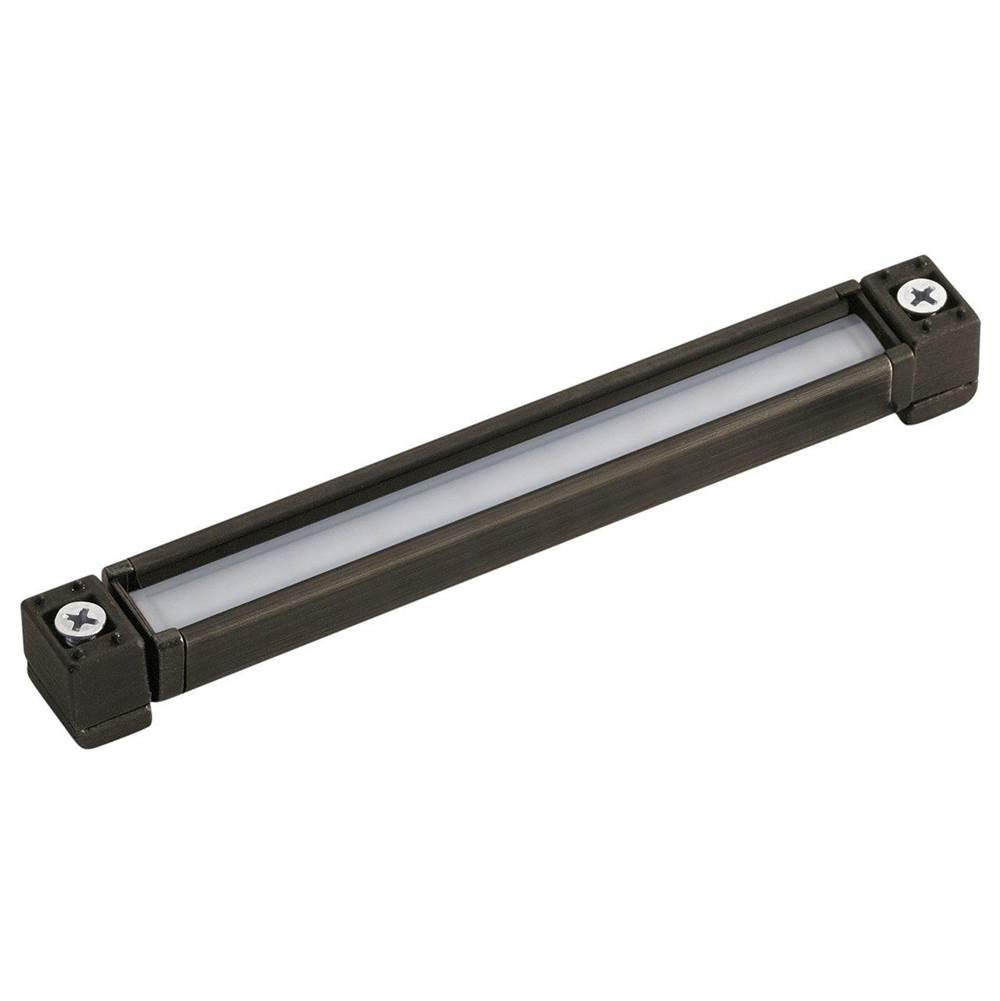

Kichler® 16101CBR30 89-16101CBR30

The 12 V LED hardscape light is an integrated, fully sealed LED fixture with a 270 deg pivot rotation from a mounting bracket which allows you to place the light precisely where it's needed. The 6 in L option fits most design applications with a 3000 K color temperature in a centennial brass (CBR) finish. Custom optics ensure smooth, uniform light distribution virtually eliminating any hotspots or glare. Integrated with a 4 kV surge protection to defend against power surges and irregularities.

Kichler® Hardscape Light, 12 VAC, 0.9 W Wattage, 47 to 63 Hz, 1 Lamps, Integrated LED Lamp, 40 Lumens, 80 CRI, 3000 K, 108 deg Beam Angle, 40000 hr Average Life, Diffuser Lens, Brass Housing, Centennial Brass Housing, -25 to 40 deg C, Bracket Mounting, 3 in Overall Width, 3/4 in Overall Height, 6 in Overall Depth 40LMS .09W/1.5VA

• The adjustable fixture can pivot 180 deg for direct to surface install and pivot 270 deg when installed with mounting bracket, usable range is installation dependent
• Offering a custom optical lens that diffuses light to deliver smooth, uniform output while eliminating hotspots and glare that may reflect off walls or installation surfaces
• Can be installed either as a traditional downlight or as an uplight, on or off mounting bracket
• Housing cavity and electronics are encapsulated to help keep all critical components protected against the elements
• 4000 V system surge protection helps guard against system power surges and irregularities
• Customizable mounting bracket with breakaway corner tabs that allow for easier installations in retrofit applications
• Bracket is designed as an installation template with centering notch and screw pilot holes for installation guidance when mounting off bracket

• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/KCH-16101CBR30.pdf
