NDS® 820 86G-M820
  1. pin-int

NDS® 820 86G-M820

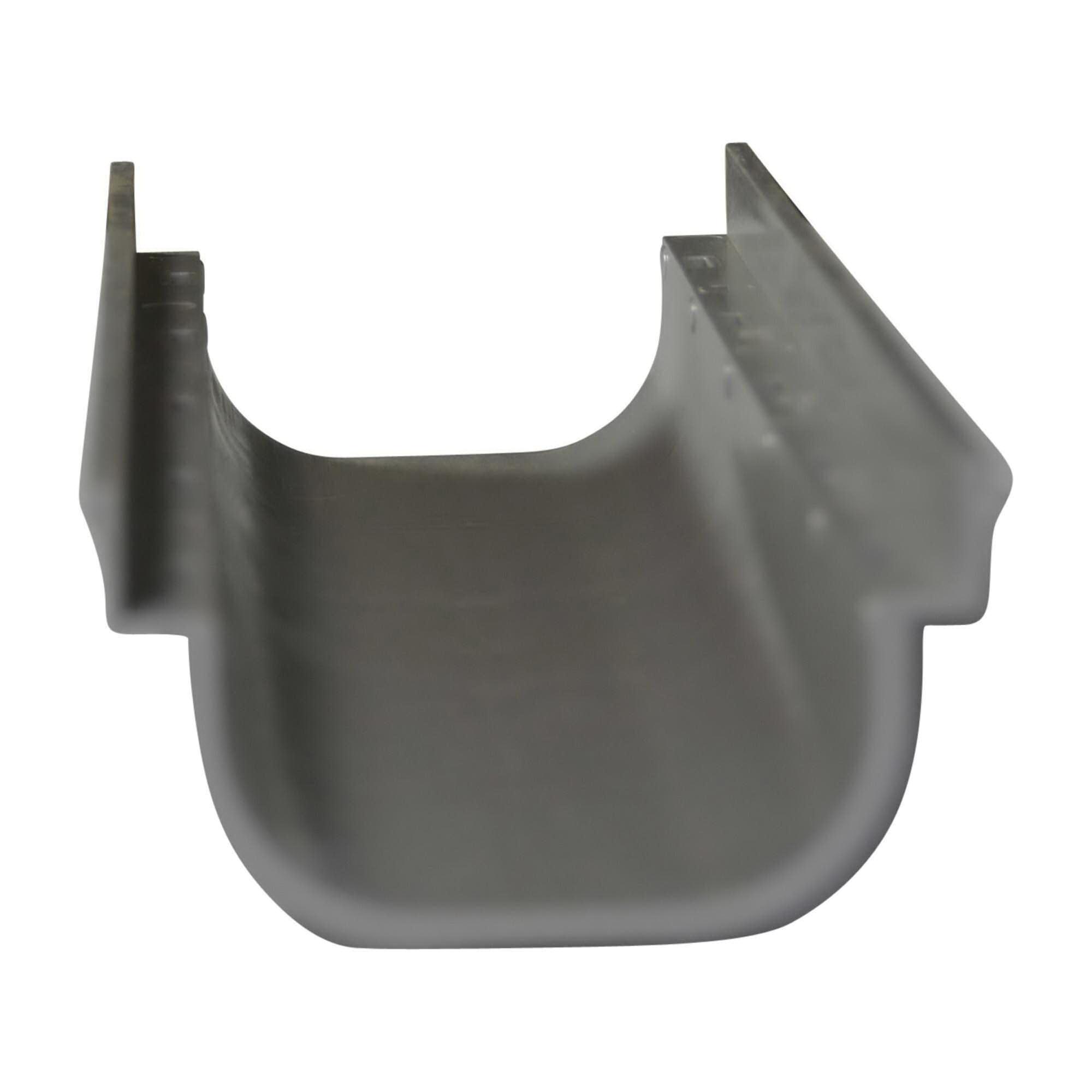

NDS® Pro Series 820 Shallow Profile Channel Drain, 20 in L, 5-1/2 in W, 2-5/8 in D, PVC Drain

  • Manufacturer: NORMA Group
  • Brand Name: NDS®
  • Part#: 86G-M820
  • MPN: 820
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

NDS® 5 in Pro Series features include 39-3/8 in long deep profile high impact PVC channel drain with mechanical interlocking joints, structural foam polyolefin light traffic channel grate with an open surface area 20.44 sq-in/ft, 26.77 gpm/ft, UV inhibitors. Recommended for medium-duty pneumatic tire traffic; autos and light trucks less than 20 mph. End and bottom outlet fits 3 in sewer and drain fittings end cap/knock-out end and outlet fitting simplifies assembly and installation Class B create a channel as long as you need, or reduce to lengths as short as 4 in for smaller, interlocking sections.

NDS® Shallow Profile Channel Drain, 20 in Length, 5-1/2 in Width, 2-5/8 in Depth, 61 to 175 psi Load Rating, PVC Drain, Light Gray Drain

Depth      :      2-5/8 in
Drain Color      :      Light Gray
Drain Material      :      PVC
Length      :      20 in
Load Rating      :      61 to 175 psi
Series      :      Pro Series
Special Order Item      :      N
Width      :      5-1/2 in
  • 5 in wide shallow-profile UV protected high impact PVC channel drain with mechanical interlocking joint
