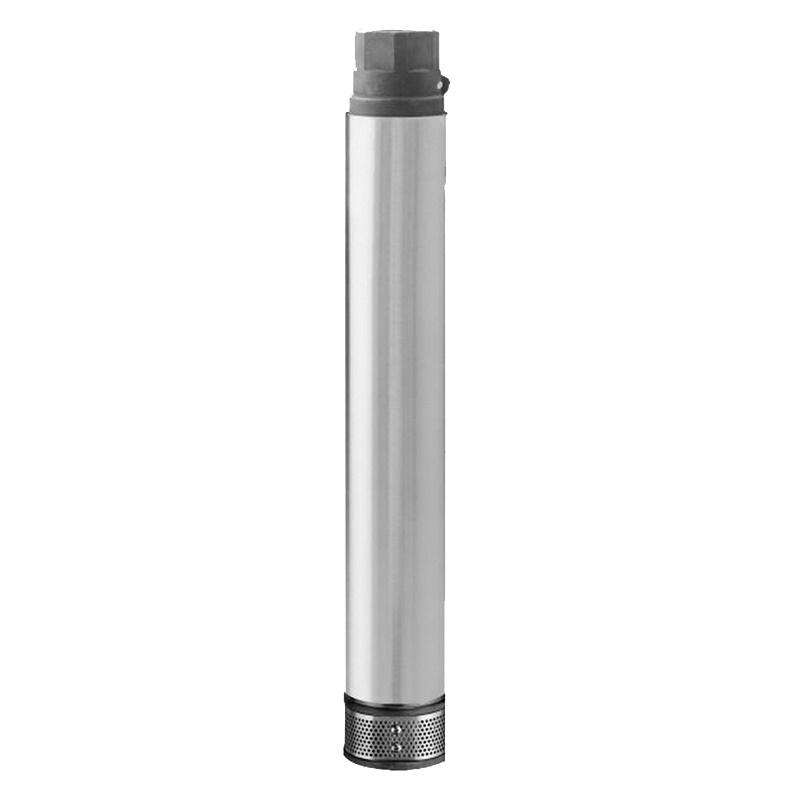

Sta-Rite L90HF50-01 57A-L90HF50
Sta-Rite 90 gpm Series L90HF50-01 Submersible Pump End, 230 V, 5 hp, 90 gpm, Stainless Steel
- Manufacturer: Pentair
- Brand Name: Sta-Rite
- Part#: 57A-L90HF50
- MPN: L90HF50-01
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
-
Available at All Branches
-
Price: Call for Price
Sta-Rite Submersible Pump End, 230 V, 5 hp, 90 gpm Flow Rate, 1 ph Phase, 2 in Discharge, 13 Stages, Noryl® Impeller, Stainless Steel, 48.875 in L x 3.9 in W, Additional Information: 3-Wire, 4 in Dia Pump
| SPECIAL_ORDER_ITEM | : | N |
| Special Order Item | : | N |
- Discharge - heavy-duty 300-grade stainless steel construction provides smooth water passage to column pipe
- Large wrench flats and rope hole
- Top bearing - self-lubricated top bearing ensures long bearing life
- Impellers - 20% glass reinforced noryl to resist abrasives and provide smooth water passage for minimal friction loss
- Diffuser bearing - bearings at each stage provide radial protection and stability and excellent resistance to sand damage
- Motor bracket - 300-grade precision cast stainless steel
- Incorporates an efficient hydraulic design for maximum volume and access to motor mounting nuts
- Shaft - 300-grade treated stainless steel pump shaft is corrosion-resistant
- The hex shape offers generous impeller drive surfaces
- Motor coupling - pressed-on, sintered 300-grade stainless steel for maximum corrosion resistance provides trouble-free transfer of power between motor and pump shaft
- Shell - heavy gauge, 300 Series stainless steel pump shell is durable and offers high corrosion resistance
- Intake screen - 300 Series stainless steel material offers maximum corrosion resistance and protects against damaging solids entering the pump
