Spears® 3622-040 SO-45-3622-040
  1. pin-int

Spears® 3622-040 SO-45-3622-040

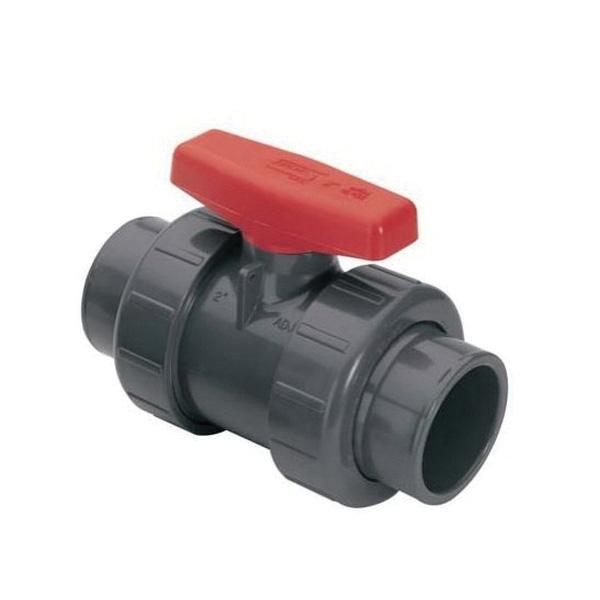

Spears® 3622-040 True Union Standard Ball Valve, 4 in, Socket, PVC, 150 psi

  • Manufacturer: Spears Manufacturing
  • Brand Name: Spears®
  • Part#: SO-45-3622-040
  • MPN: 3622-040
  • UPC: 054211992050
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

Spears® True Union Standard Ball Valve, 4 in Nominal, Socket Connection, 150 psi, T-Handle Operator, PVC Body, HDPE/PTFE Trim, Polypropylene Handle, EPDM/FKM Softgoods, Gray, 73 deg F, 11-7/8 in W

Body Material      :      PVC
Color      :      Gray
Connection Type      :      Socket
Dimensions      :      11-7/8 in W
Handle Material      :      Polypropylene
Nominal Size      :      4 in
Operator Type      :      T-Handle
Pressure Rating      :      150 psi
SPECIAL_ORDER_ITEM      :      Y
Softgoods Material      :      EPDM/FKM
Special Order Item      :      Y
Temperature Rating      :      73 deg F
Trim Material      :      HDPE/PTFE
  • Chemical and corrosion-resistant PVC construction
  • Interchangeable with all true union 2000 valves, mates with union 2000 pipe unions
  • SCH 80 full bore design
  • Strong, buttress thread union nuts
  • Spears® single O-ring Safe-T-Shear® stem design
  • Spears® safe-T-blocked seal carrier
  • Assembled with silicone-free, water soluble lubricant
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Spears_8171010_Catalog.pdf
