Liberty Pumps® LSGX202M-3 60A-L-LSGX202M-3
  1. pin-int

Liberty Pumps® LSGX202M-3 60A-L-LSGX202M-3

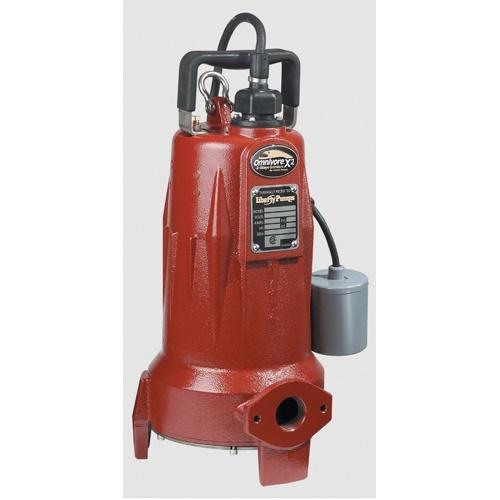

Liberty Pumps® LSGX200 Series LSGX202M LSGX202M-3 2-Stage High Head Grinder Pump, 208 to 230 V, 15 A, 2 hp, Iron

  • Manufacturer: Liberty Pumps
  • Brand Name: Liberty Pumps®
  • Part#: 60A-L-LSGX202M-3
  • MPN: LSGX202M-3
  • UPC: 671812122480
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
    • Available at All Branches

Liberty Pumps® two stage LSGX Series Omnivore® grinders meet the demanding needs of commercial and residential sewage applications where difficult solids handling ability is crucial. The LSGX features patented v-slice® cutter technology. This superior cutting system, made of 440 hardened stainless steel, shears rags, jeans, wipes, diapers, sanitary napkins and other debris into a fine slurry. The two stage design provides higher pressure with maximum head capabilities to 185 ft. This performance allows installation of a centrifugal grinder where only progressive cavity designs were previously used in LPS systems. Applications include individual or groups of homes, motels, schools, shopping centers, lakefront developments and systems requiring pressure pumping of waste. Other features include a one-piece cast iron volute and motor housing, quick-connect power cord for field serviceability and a 3 years limited warranty from last bill of sale. Complete factory pre-assembled systems are available with multiple basin sizes and control panel options.

Liberty Pumps® 2-Stage High Head Grinder Pump, Model: LSGX202M, 208 to 230 V, 15 A, 60 Hz, 2 hp, 3450 rpm, 39 gpm Flow Rate, 1 ph Phase, 1-1/4 in Discharge, 140 deg F, 19.65 in H x 9.5 in W, 300 Stainless Steel Impeller, Ball Bearing, Iron, Additional Information: 12/3 SJOOW 35 ft Cord, Class B Motor Insulation

Additional Information      :      12/3 SJOOW 35 ft Cord, Class B Motor Insulation
Amperage Rating      :      15 A
Bearing Type      :      Ball
Dimensions      :      19.65 in H x 9.5 in W
Discharge Size      :      1-1/4 in
Flow Rate      :      39 gpm
Frequency Rating      :      60 Hz
HP Rating      :      2 hp
Impeller Material      :      300 Stainless Steel
Material      :      Iron
Model      :      LSGX202M
Phase      :      1 ph
Series      :      LSGX200 Series
Special Order Item      :      N
Speed Rating      :      3450 rpm
Temperature Rating      :      140 deg F
Voltage Rating      :      208 to 230 V
  • Lower installation cost with smaller diameter pressure pipe
  • High head capability reduces the need for costly lift stations
  • Superior pump design allows for efficient pumping over a wide range of head applications - even negative head
  • Efficient design provides lower operating cost
  • Unsurpassed reliability reduces maintenance and homeowner inconvenience
