Spears® 6632-010 SO-45-6632-010
  1. pin-int

Spears® 6632-010 SO-45-6632-010

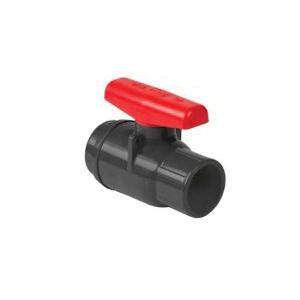

Spears® 6632-010 Ball Valve, 1 in, Socket, PVC, 235 psi

  • Manufacturer: Spears Manufacturing
  • Brand Name: Spears®
  • Part#: SO-45-6632-010
  • MPN: 6632-010
  • UPC: 054211370186
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

Economical, low profile quarter-turn shut-off valve is excellent for general purpose and many OEM applications.

Spears® Ball Valve, 1 in Nominal, Socket Connection, 235 psi, 4 in Inlet to Outlet Length, 2-5/16 in Top to Inlet Center, 157 Cv Flow Coefficient (Cv), PVC Body, FKM Seal, Polypropylene Handle, FKM Softgoods, 73 deg F, 4 in L, Domestic/Import: Domestic

Domestic/Import      :      Domestic
SPECIAL_ORDER_ITEM      :      Y
Special Order Item      :      Y
  • Industrial-grade, maintenance-free sealed unit
  • New actuator ready body - accepts Spears® improved mini-mount actuator mounting kits
  • New double O-ring stem seal
  • Spears® Safe-T-Shear® stem
  • PTFE self-adjusting floating seats
  • Suitable for vacuum service
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Spears_6632_010_Catalog.pdf
