Rain Bird® B30510 76A-200PGA
  1. pin-int

Rain Bird® B30510 76A-200PGA

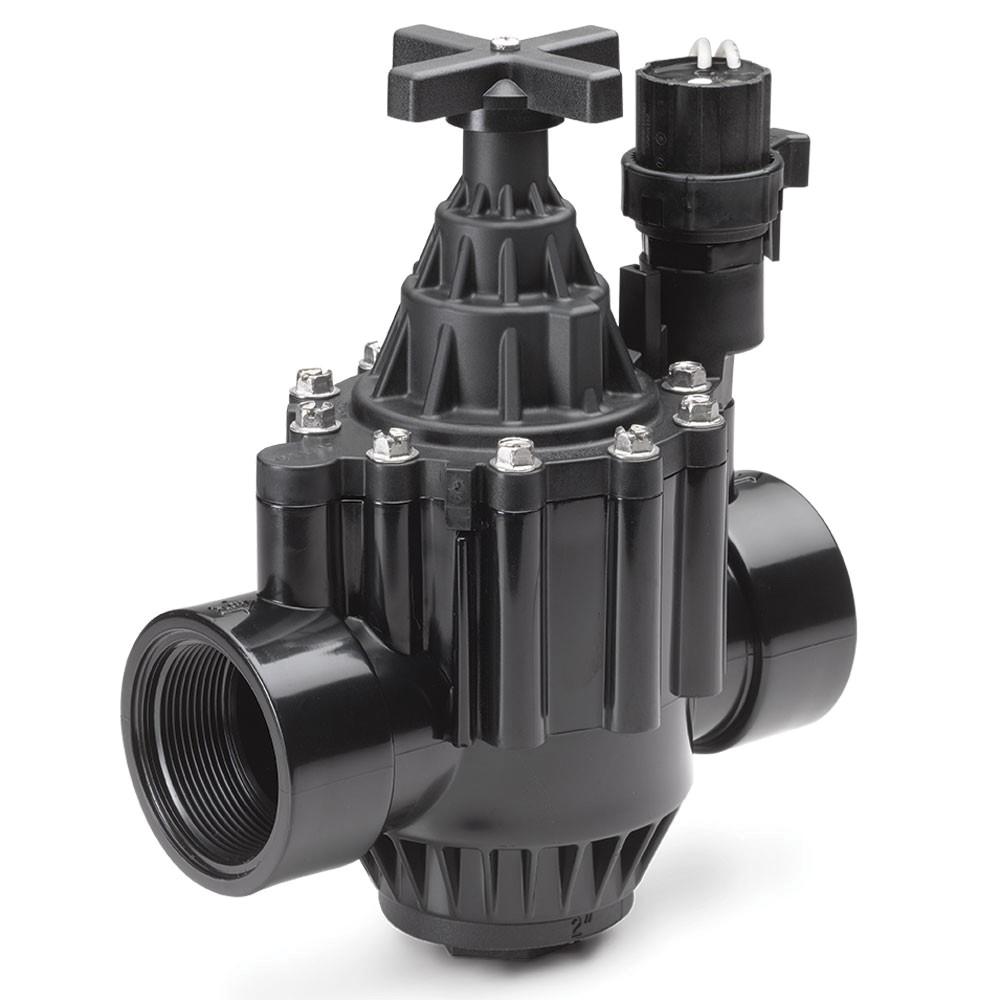

Rain Bird® PGA Series B30510 In-Line Valve, 2 in Nominal, FPT, 2 to 150 gpm, 15 to 150 psi, 110 deg F

  • Manufacturer: Rain Bird
  • Brand Name: Rain Bird®
  • Part#: 76A-200PGA
  • MPN: B30510
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

Built for high-end residential and light commercial applications, Rain Bird® PGA Series valves are the toughest, most reliable valves in their class. These long-lasting, easy-to-service valves are proven to perform at the highest level, even under harsh temperatures and intense pressure.

Rain Bird® In-Line Valve, PGA Series, 2 in Nominal, FPT Connection, 15 to 150 psi, 2 to 150 gpm Flow Rate, 110 deg F, 7-1/4 x 5-1/2 x 3-1/4 in

Special Order Item      :      N
  • Water-tight seal between the body and bonnet for maximum confidence, even in the most extreme conditions
  • Robust electrical design for quiet performance you can count on
  • Rugged PVC and glass filled nylon construction for reliable operation

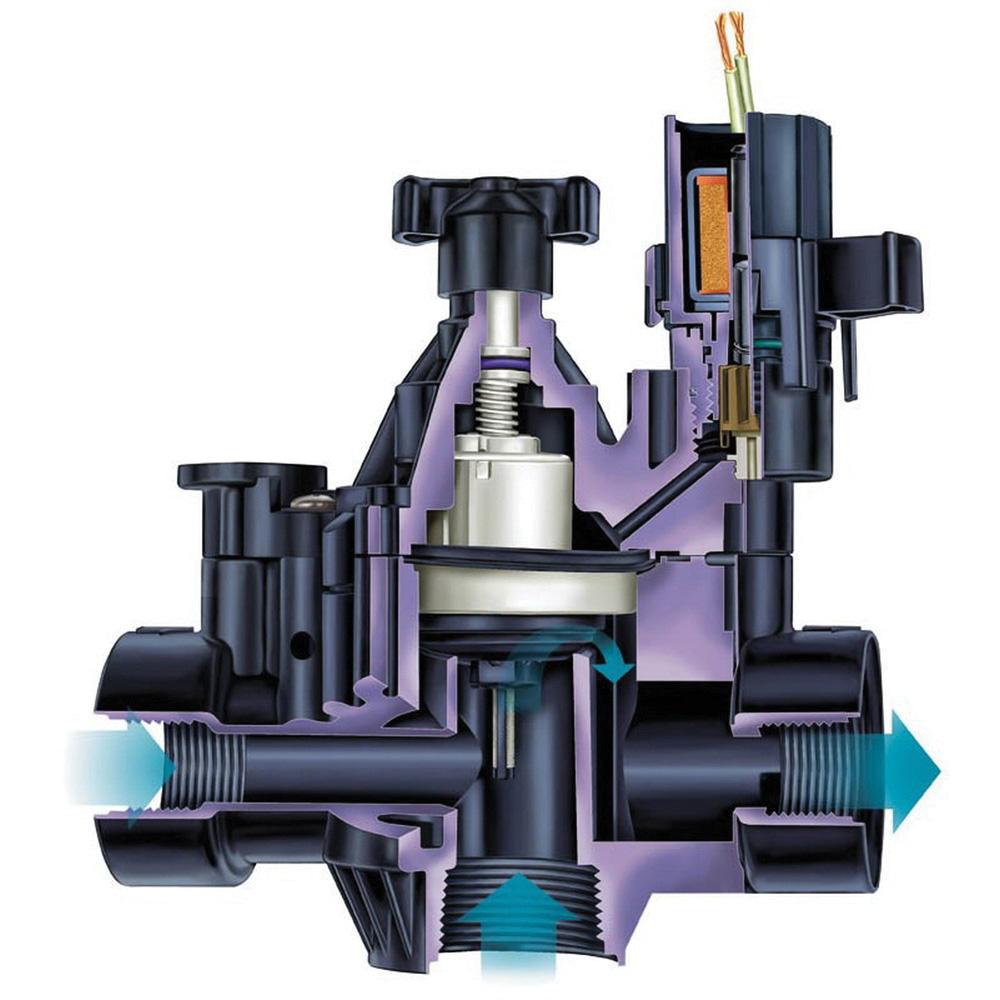

  • Normally closed, forward flow design
  • Filtered pilot flow to resist debris and clogging
  • Slow closing to prevent water hammer and subsequent system damage
  • Globe and angle configuration for flexibility in design and installation
  • Manual internal bleed operates the valve without allowing water into the valve box, allowing pressure regulator adjustment without turning the valve on at the controller

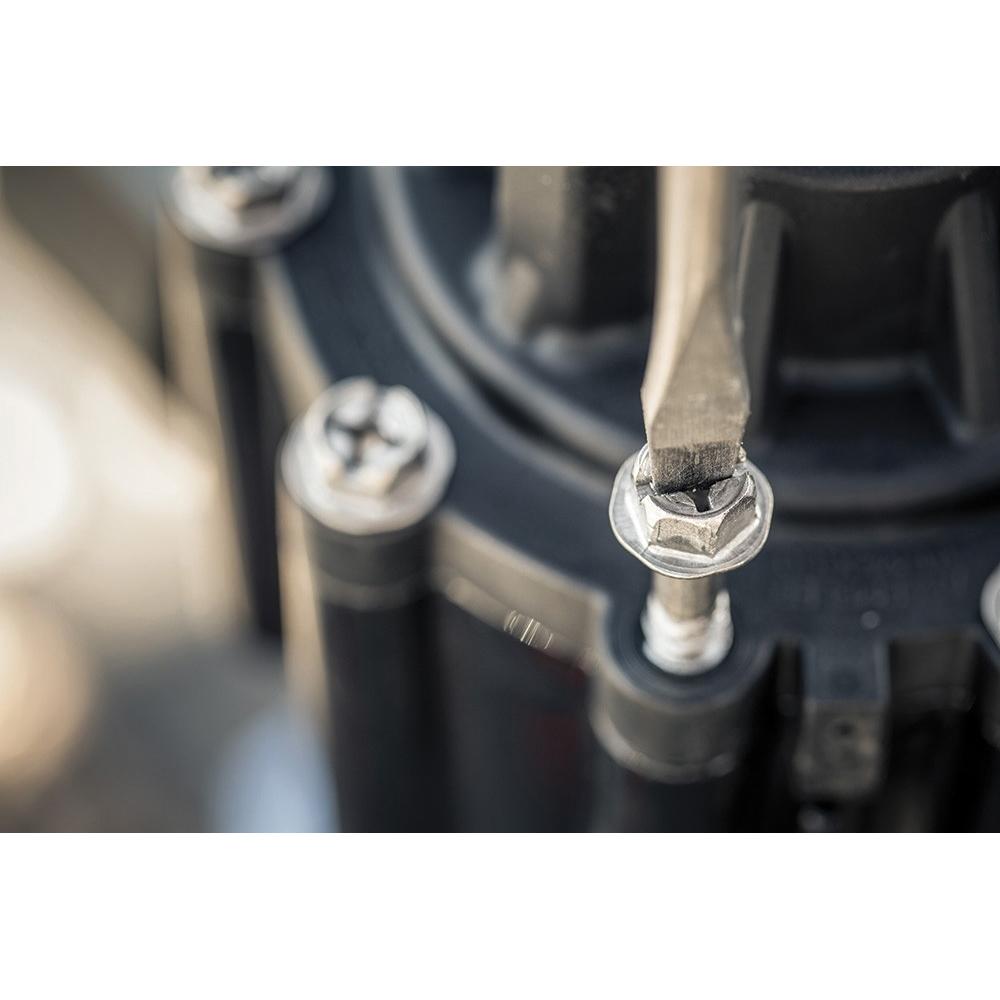

  • One-piece solenoid design with captured plunger and spring for easy servicing
  • Non-rising flow control handle adjusts water flow as needed
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Rain_Bird_SBCPLG_Catalog.pdf
