Spears® 2132-020C SO-45-2132-020C

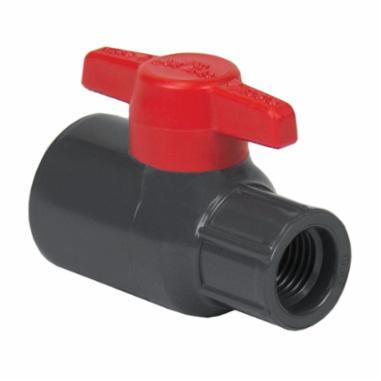

Spears® 2132-020C Compact Ball Valve, 2 in, Socket, CPVC, 235 psi

  • Manufacturer: Spears Manufacturing
  • Brand Name: Spears®
  • Part#: SO-45-2132-020C
  • MPN: 2132-020C
  • UPC: 054211500750
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

This industrial-grade, quarter-turn shut-off valve is popular where maintenance-free installations are desired for a variety of chemical processing, industrial and OEM applications. IPS sizes 1/2 to 4 in available with socket, threaded or flanged end connectors.

Spears® Compact Ball Valve, 2 in Nominal, Socket Connection, 235 psi, Water Media, 4-3/8 in Top to Inlet Center, Handle Operator, 706 Cv Flow Coefficient (Cv), Material Standard: ASTM 23447 Type IV, CPVC Body, PTFE Seat, Polypropylene Handle, Thermoplastic Ball, FKM Softgoods, 73 deg F, Domestic/Import: Domestic

Domestic/Import      :      Domestic
SPECIAL_ORDER_ITEM      :      Y
Special Order Item      :      Y
  • Chemical and corrosion-resistant PVC or CPVC construction
  • SCH 80 full-bore design
  • High-impact polypropylene handle
  • Spears® single O-ring Safe-T-Shear® stem design
  • Self-adjusting PTFE floating seat design
  • Suitable for vacuum service
  • Assembled with silicone-free, water soluble lubricant
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Spears_2122_010C_Specification_Sheet.pdf
