K-RAIN® 14053-RCW 69A-14053RCW

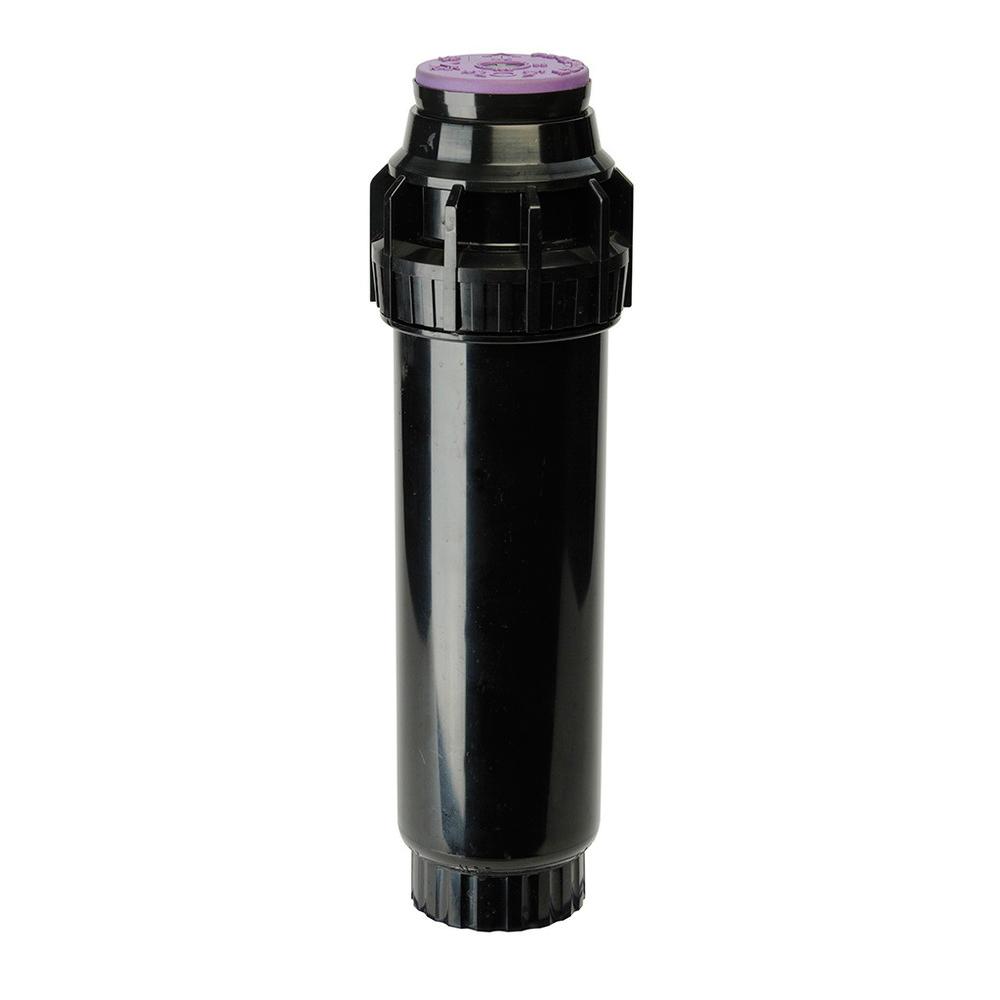

K-RAIN® ProSport® Series 14053-RCW Gear Driven High Speed Sprinkler Rotor, 43 to 77 ft Operating, 1 in, FNPT, Plastic

  • Manufacturer: K-Rain
  • Brand Name: K-RAIN®
  • Part#: 69A-14053RCW
  • MPN: 14053-RCW
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

The ProSport® comes standard with a unique triple nozzle configuration, consisting of a primary nozzle for long distance and two secondary nozzles for mid range and short distance coverage. This nozzle design provides superior, close in water distribution from 43 to 77 ft (13.1 to 23.5 m). Ideal for quick wet downs and dust control.

K-RAIN® Gear Driven High Speed Sprinkler Rotor, ProSport® Series, 43 to 77 ft Operating, Full-Circle Spray Pattern, 26 deg Trajectory Angle, 40 to 90 psi, 5.1 to 32.5 gpm Flow Rate, Precipitation Rate: 0.48 to 1.56 in/hr, 4 in Pop-Up Height, 1 in Connection, FNPT Connection, Plastic, 7-1/2 in Overall Height, Additional Information: 40 to 65 ft Spacing, 40 to 360 deg Arc Adjustment Range, 4-1/2 in Riser Height

SPECIAL_ORDER_ITEM      :      N
Special Order Item      :      N
  • Revolutionary patented top arc set simplified arc set allows for wet or dry adjustment in seconds
  • Triple nozzle configuration ensures even distribution of water
  • 2-in-1 adjustable or continuous rotation provides a full range of adjustment from 40 deg to a continuous full circle
  • Top arc set degree markings clearly indicates the current watering pattern and simplifies arc set adjustment
  • Arc memory clutch prevents internal gear damage and returns rotor to its prior setting automatically if nozzle turret is forced past its stop
  • Time proven patented reversing mechanism assures continuous reverse and return over a 35 years history
  • Heavy-duty rubber cover and mud guard protects against physical injury and reduces liability, allows sprinkler to be installed below grade
  • Factory installed check valve prevents low head drainage
