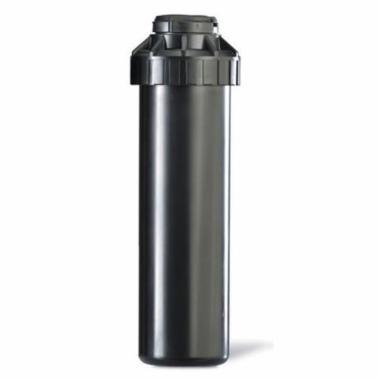

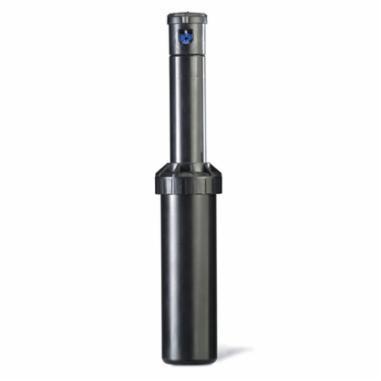

Rain Bird® Y34000 76A-3504PC
Rain Bird® 3500 Series Y34000 Rotor, 15 to 35 ft Operating, 1/2 in, FNPT, Plastic
- Manufacturer: Rain Bird
- Brand Name: Rain Bird®
- Part#: 76A-3504PC
- MPN: Y34000
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
-
Available at All Branches
-
Price:
The 3500 Series rotor is an easy-to-use short to mid-range 1/2 in gear-drive rotor, offering value and convenience for residential applications. Utilizing a simple flat-bladed screwdriver, the 3500's arc adjustment is quick and easy. This versatile rotor offers an attachable nozzle tree with six superior performing rain curtain nozzles and the convenience of reversing full and part-circle operation (up to 360 deg) in one unit. Plus, a nozzle-removal feature and an easily removable filter screen make maintenance a breeze.
Rain Bird® Rotor, 3500 Series, 15 to 35 ft Operating, Rain Spray Pattern, 40 to 360 deg Trajectory Angle, 25 to 55 psi, 0.54 to 4.6 gpm Flow Rate, Precipitation Rate: 0.37 to 0.83 in/hr, 4 in Pop-Up Height, 1/2 in Connection, FNPT Connection, Plastic, 6-5/8 in Overall Height
| SPECIAL_ORDER_ITEM | : | N |
| Special Order Item | : | N |
- 4 in part/full-circle pop-up rotor sprinkler
- Top-adjust arc adjustment requiring only a flat-blade screwdriver
- 40 to 360 deg arc part-circle arc rotation and reversing full-circle rotation in one
- Attachable nozzle tree of six Rain Curtain™ nozzles
- Radius adjustment screw allows up to 35% radius reduction without changing nozzles
- Quick check arc/fast forward
- Dual-action, positive stop wiper seal protects internals from debris and assures positive pop-up and retraction
- Self-adjusting stator does not require replacement when changing nozzles
- Water lubricated gear drive design for durable, reliable operation
- Easily removable filter screen
- Nozzle removal feature
- Arc setting factory preset at 180 deg for installation convenience
