Sta-Rite SLF 57A-SLF
  1. pin-int

Sta-Rite SLF 57A-SLF

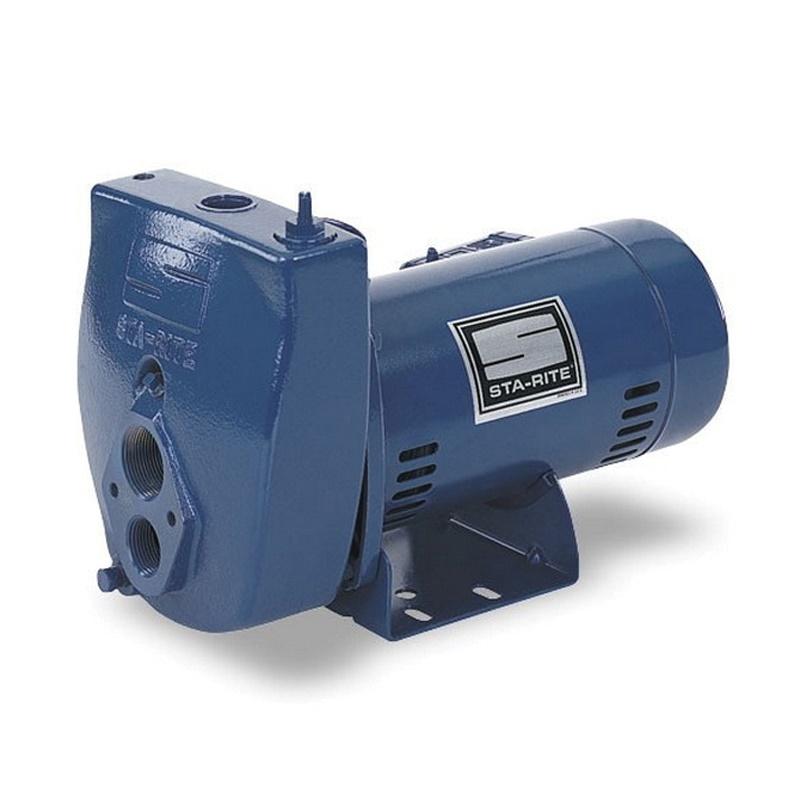

Sta-Rite SL Series SLF Self-Priming Convertible Jet Pump, 11.3 gpm, 115/230 V, 1-1/2 hp, 1 ph -Phase

  • Manufacturer: Pentair
  • Brand Name: Sta-Rite
  • Part#: 57A-SLF
  • MPN: SLF
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

The ProJet SL convertible jet pumps offer a proven cast iron self-priming design available in 1/2 to 1-1/2 hp models. The ProJet SL convertible jets utilize the built-in regulators, offering easier priming and better range of performance from a complete line of shallow well, 4 in double pipe, 2 and 3 in single pipe jet packages.

Sta-Rite Self-Priming Convertible Jet Pump, 1-1/4 in Suction, 1 in Discharge, 11.3 gpm Flow Rate, 115/230 V, 1-1/2 hp, 1 ph Phase, 60 Hz, 26.8 gpm Capacity, Maximum Feet of Head: 25 ft, 70 ft, 140 deg F Maximum Temperature, 127 psi, 50 psi Working Pressure, Noryl Impeller, Iron Body, 17.91 in L x 10.48 in W x 12.18 in H

Capacity      :      26.8 gpm
Discharge Size      :      1 in
Flow Rate      :      11.3 gpm
Frequency Rating      :      60 Hz
HP Rating      :      1-1/2 hp
Impeller Material      :      Noryl
Maximum Feet of Head      :      25 ft, 70 ft
Maximum Temperature      :      140 deg F
Phase      :      1 ph
Series      :      SL Series
Special Order Item      :      N
Suction Size      :      1-1/4 in
Voltage Rating      :      115/230 V
Working Pressure      :      127 psi, 50 psi
  • Quality construction - close grained cast iron pump body is rugged one-piece unit, specially treated to corrosion-resist, drain port provided for easy winterizing
  • Noryl impeller - precision molded for perfect balance, ultra smooth for highest performance and efficiency
  • Precision molded diffuser - pump primes faster, handles more air, with multi-port, precision molded, reinforced polypropylene diffuser
  • Pressure switch - high-quality, cut-in pressure setting is adjustable, fixed 20 psi differential
  • Mechanical shaft seal - precision lapped and highly polished carbon ceramic, stainless steel construction, internal design guarantees continuous water lubrication for maximum protection
  • Motor windings - superior insulation materials protect against excessive moisture and contaminant, assure prolonged motor life
  • Balanced rotor - die cast under high pressures for uniform performance and greater efficiency, dynamically balanced
  • Heavy-duty ball bearings - shielded, permanently lubricated bearings, extensively tested to ensure extended life and smooth, quiet operation
  • Pump and motor shaft - 416 stainless steel for maximum corrosion-resistance, one-piece threaded shaft for positive impeller drive and alignment
  • Dust-proof cover - dust-proof canopy protects all electrical components from dirt, dust and insects; ventilating air cannot contaminate vital switching components, eliminates the most common cause of motor failure
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Sta_Rite_SLF_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Myers_HR50S_Instruction_Installation_Manual.pdf
