Little GIANT® 506158 SO-88-506158
  1. pin-int

Little GIANT® 506158 SO-88-506158

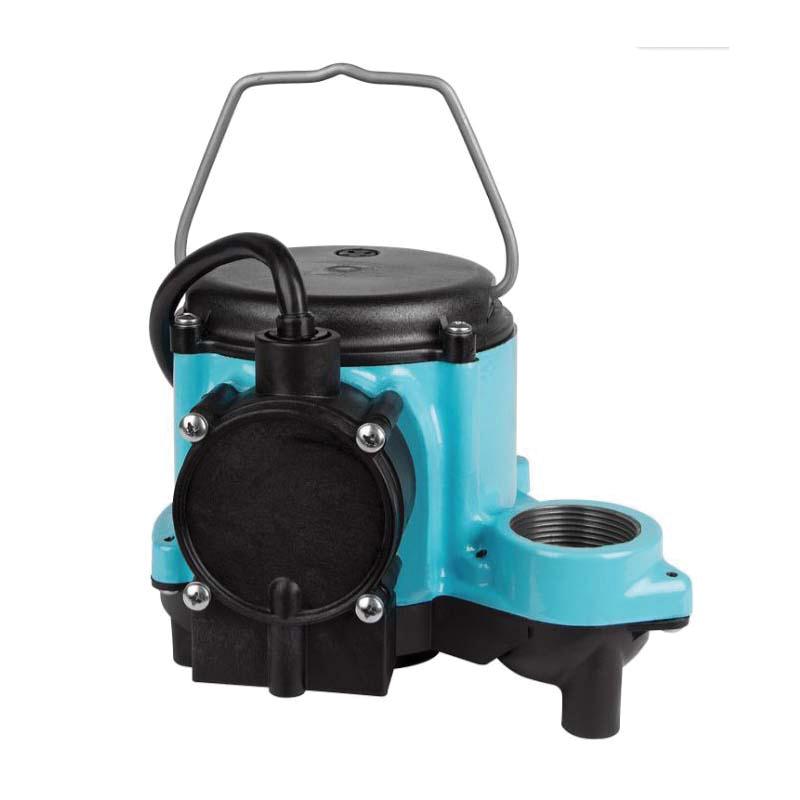

Little GIANT® 6 Series 6-CIA 506158 Sump Pump, 115 V, 9 A Full Load, 1/3 hp, 18 ft Max Feet of Head

  • Manufacturer: Franklin Electric
  • Brand Name: Little GIANT®
  • Part#: SO-88-506158
  • MPN: 506158
  • UPC: 010121061583
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

Little GIANT® Sump Pump, Model: 6-CIA, 115 V, 9 A Full Load, 50/60 Hz, 1/3 hp, 46 gpm at 5 ft, 29 gpm at 10 ft, 12.5 gpm at 15 ft Flow Rate, 1-1/2 in Discharge, 10 ft L Cord, Maximum Feet of Head: 18 ft, 7.8 psi, 120 deg F, Nylon Impeller, Epoxy-Coated Aluminum, 9-1/2 in L x 8-1/2 in W x 6 in H

Amperage Rating      :      9 A Full Load
Cord Size      :      10 ft L
Discharge Size      :      1-1/2 in
Flow Rate      :      46 gpm at 5 ft, 29 gpm at 10 ft, 12.5 gpm at 15 ft
Frequency Rating      :      50/60 Hz
HP Rating      :      1/3 hp
Impeller Material      :      Nylon
Maximum Feet of Head      :      18 ft
Model      :      6-CIA
Pressure Rating      :      7.8 psi
SPECIAL_ORDER_ITEM      :      Y
Series      :      6 Series
Special Order Item      :      Y
Voltage Rating      :      115 V
  • Cast iron pump housing with protective epoxy coating for corrosion-resistance
  • Oil-filled motor housing for lifetime lubrication and rapid heat dissipation
  • 3/10 hp shaded pole motor
  • Stainless steel screws, bolts and handle to protect against corrosion
  • Mechanical seal (stainless steel spring, nitrile parts, carbon and ceramic faces) to assure maximum protection against pump failure
  • Bearings - upper and lower sintered sleeve bearings for extended motor life
  • Thermal overload protection
  • Automatic operation with pressure switch activates pump when water level is between 7 and 10, pump shuts-off when water level falls to between 1 and 4 (pressure switch is non-adjustable)
  • Automatic operation with piggyback mechanical float switch activates pump when water level is between 9 and 10-1/2, pump shuts-off when water level falls to between 2 and 3 (pumping range is adjustable)
  • Integral diaphragm switch
  • Polypropylene volute, cold rolled steel motor shaft, nitrile with carbon shaft seal, stainless steel fasteners
