Sta-Rite S20P4HS15221 SO-57A-S20P4HS15221
  1. pin-int

Sta-Rite S20P4HS15221 SO-57A-S20P4HS15221

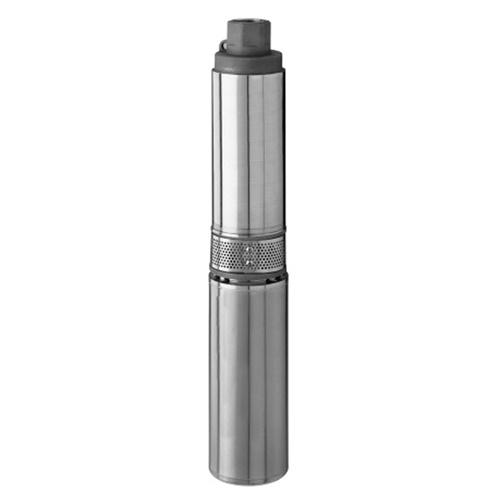

Sta-Rite HS Series S20P4HS15221 Submersible Pump, 20 gpm, 230 V, 1-1/2 hp, 1 ph -Phase, 403 ft Max Feet of Head

  • Manufacturer: Pentair
  • Brand Name: Sta-Rite
  • Part#: SO-57A-S20P4HS15221
  • MPN: S20P4HS15221
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

Precision-engineered, high-quality, rugged Signature 2000® Stainless Steel Series Pumps deliver efficient, dependable performance even in rough, aggressive water. Heads to 1950 ft and capacities to 65 gpm. Built to deliver long-term, trouble-free service. Floating impeller design resists sand and reduces sand locking. These pumps feature the proven SignaSeal™ staging system.

Sta-Rite Submersible Pump, 1-1/4 in Discharge, 20 gpm Flow Rate, 230 V, 1-1/2 hp, 1 ph Phase, 20 gpm Capacity, Maximum Feet of Head: 403 ft, 174 psi Working Pressure, Acetal Impeller, 300 Stainless Steel Body, Additional Information: 10 Stages, 3-7/8 in Dia, 2-Wire

Capacity      :      20 gpm
Discharge Size      :      1-1/4 in
Flow Rate      :      20 gpm
HP Rating      :      1-1/2 hp
Impeller Material      :      Acetal
Maximum Feet of Head      :      403 ft
Phase      :      1 ph
SPECIAL_ORDER_ITEM      :      Y
Series      :      HS Series
Special Order Item      :      Y
Voltage Rating      :      230 V
Working Pressure      :      174 psi
  • Proven staging system - our proven SignaSeal™ staging system incorporates a harder-than-sand ceramic wear surface that when incorporated with our floating impeller design, greatly reduces problems with abrasives, sand lock-up and running dry
  • Discharge - corrosion-resistant 300-grade stainless steel for durability in aggressive water, large octagon wrench area for ease of installation
  • Discharge bearing - self-lubricating nylatron bearing resists wear from sand
  • Intake corrosion-resistant 300-grade stainless steel for durability in aggressive water
  • Shaft - positive drive from 7/16 in hexagonal heavy-duty 300-grade stainless steel
  • Coupling - stainless steel press fit to pump shaft, couples to all standard NEMA motors
  • Shell highest-grade, heavy walled corrosion-resistant stainless steel, threaded for easy servicing
  • Hardware - all screws, washers and nuts are corrosion-resistant 300-grade stainless steel
  • Durable internal spring-loaded check valve
  • Cable guard: corrosion-resistant stainless steel guard protects motor leads, tapered ends prevent pump from catching on well
  • Intake screen is corrosion-proof
  • Pentek® XE Series motor - 2 and 3-wire NEMA standard all stainless construction water filled motors
