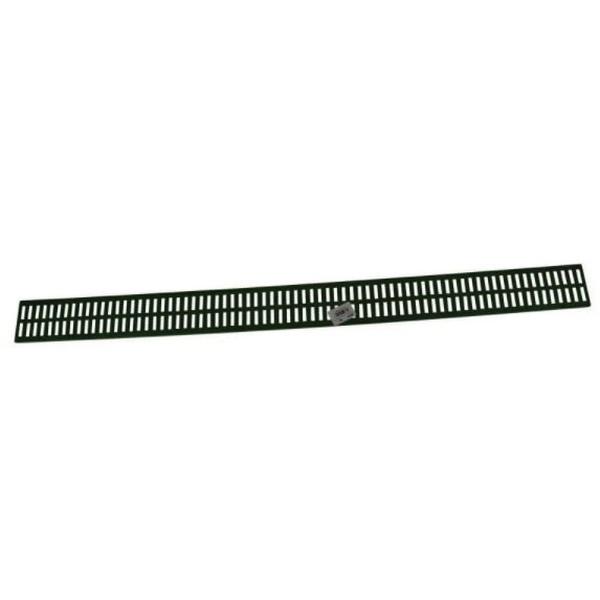

Nds® 542 Channel Grate, Flat Shape, 3 ft Length, 2-3/4 in Width, 1/2 in Height, Polypropylene, Green

  • Manufacturer: NORMA Group
  • Brand Name: NDS®
  • Part#: 86G-542
  • MPN: 542
  • UPC: 052063505428
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

The NDS® 3 ft channel grate is an essential component for the NDS® mini channel drain system. It effectively collects and removes excess water from driveways, patios, and other outdoor areas, ensuring proper drainage. Designed for maximum durability, this grate is rated for light vehicular traffic. It serves as a superior, maintenance-free alternative to traditional concrete drains, featuring UV inhibitors to prevent sun-induced fading and cracking, while also being chemical-resistant and rust-proof. This lightweight and easy-to-install solution is part of the comprehensive NDS® line of drainage products, fittings, and accessories, making it a reliable choice for both contractors and homeowners.

Nds® 542 channel grate features a flat shape, 3 ft length, 2-3/4 in width, 1/2 in height, 1/4 x 5/16 in opening size, 9.9 sq-in/ft surface area, 30.29 gpm flow rate, and is constructed from durable green polypropylene

Color      :      Green
Flow Rate      :      30.29 gpm
Height      :      1/2 in
Length      :      3 ft
Material      :      Polypropylene
Opening Size      :      1/4 x 5/16 in
SPECIAL_ORDER_ITEM      :      N
Shape      :      Flat
Special Order Item      :      N
Surface Area      :      9.9 sq-in/ft
Width      :      2-3/4 in
  • Durable green polypropylene construction ensures reliable, long-lasting performance
  • Measures 3 ft L x 2-3/4 in W x 1/2 in H for a precise, low-profile fit in channel drains
  • Handles a high flow rate of 30.29 gpm for superior water management
  • Features 1/4 in x 5/16 in openings to effectively block debris while maximizing water flow
