Flomatic® S3W04 SO-46-020SS
  1. pin-int

Flomatic® S3W04 SO-46-020SS

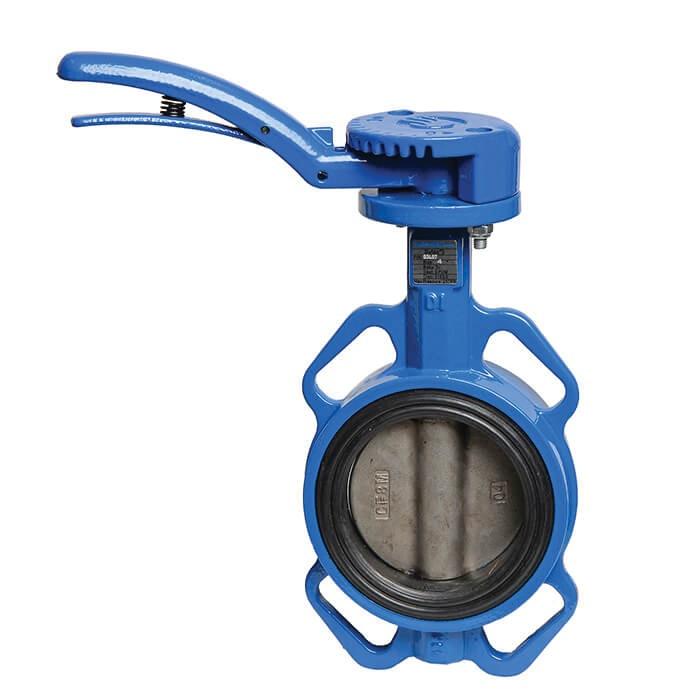

Flomatic® Sylax 3 Series S3W04 Butterfly Valve, 2 in, Wafer, Ductile Iron, 250 psi

  • Manufacturer: Flomatic Corporation
  • Brand Name: Flomatic®
  • Part#: SO-46-020SS
  • MPN: S3W04
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

Flomatic® SYLAX® 3, Strong DI body, EPDM vulcanized seat, stainless steel stem and disc, 250 psi bi-directional pressure rating, 220 deg F maximum temperature rating, NSF/ANSI 61 certified, for use with ANSI 125/150# flanges with lockable 10-position handle ISO 5211 top flange for easy actuation. MSS SP-67 compliant.

Flomatic® Butterfly Valve, Sylax 3 Series, 2 in Nominal, Wafer Connection, 250 psi, Lever Actuator, Ductile Iron Body, EPDM Seat, Stainless Steel Stem, Stainless Steel Disc, 220 deg F, Material Standard: ASTM A536 65-45-12, Low-Lead, 11.17 in L x 5.15 in W, Additional Information: For Use With ANSI 125/150# Flanges EPDM SEAT

Actuator Type      :      Lever
Connection Type      :      Wafer
Disc Material      :      Stainless Steel
Lead-Free/Contains Lead      :      Low-Lead
Material Standard      :      ASTM A536 65-45-12
SPECIAL_ORDER_ITEM      :      Y
Seat Material      :      EPDM
Series      :      Sylax 3 Series
Special Order Item      :      Y
Stem Material      :      Stainless Steel
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Flomatic_S3W04_Specification_Sheet.pdf
