Berkeley B66161 SO-57B-B66161
  1. pin-int

Berkeley B66161 SO-57B-B66161

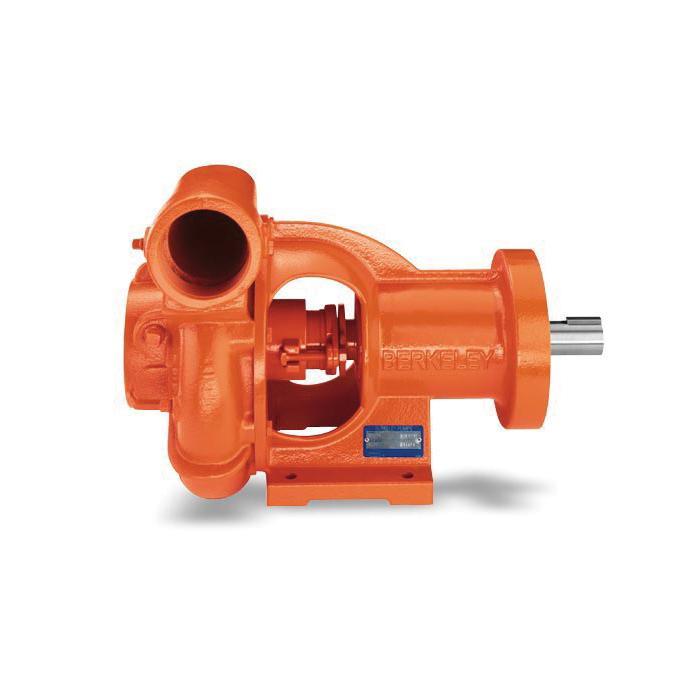

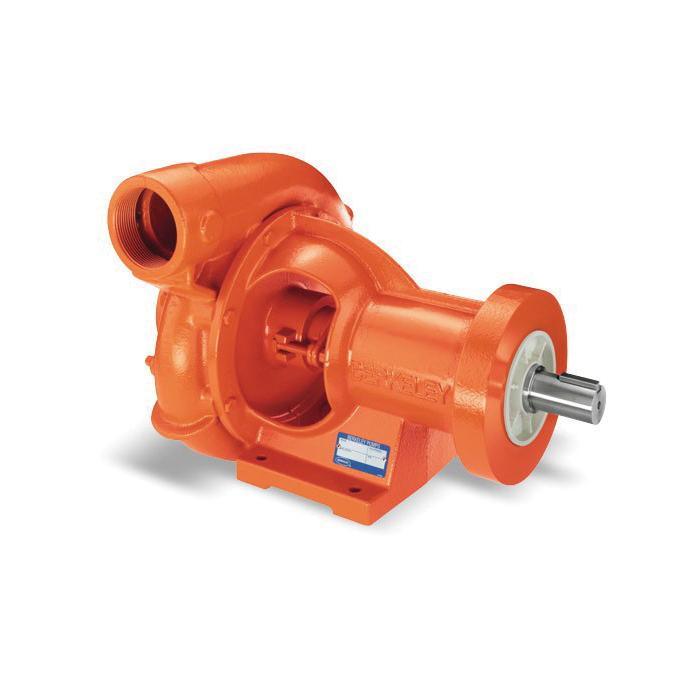

Berkeley B3 Series B3ZRM B66161 Centrifugal Pump, 4 in Inlet Connection, 3 in Outlet Connection, Iron Housing

  • Manufacturer: Pentair
  • Brand Name: Berkeley
  • Part#: SO-57B-B66161
  • MPN: B66161
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

Berkeley Type B frame-mount centrifugal pumps are designed for the user who has a separate power source suitable for driving through couplings or with belts. Ideal for all general purpose applications requiring high performance, moderate initial cost and easy maintenance.

Berkeley Centrifugal Pump, Model: B3ZRM, 4 in Inlet Connection, 3 in Outlet Connection, Frame Mounting, Iron Housing, 22.64 in Overall Length, Additional Information: Clockwise Rotation, NPT Connection, Cast Iron Impeller ROTATION

Additional Information      :      Clockwise Rotation, NPT Connection, Cast Iron Impeller
Model      :      B3ZRM
Mounting Type      :      Frame
Outlet Connection Size      :      3 in
SPECIAL_ORDER_ITEM      :      Y
Series      :      B3 Series
Special Order Item      :      Y
  • Volute case incorporates precise geometric design for increased hydraulic efficiency
  • Thick walled close grained cast iron to handle the stresses of everyday use
  • Back pull-out design allows easy removal and service without disturbing piping connections
  • Enclosed impeller designed and machined to optimize performance and operating efficiencies
  • Discharge may be rotated to any of four positions for piping convenience
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Berkeley_B52383_Catalog.pdf
  • pdfOwners/User Manual https://assets.unilogcorp.com/267/ITEM/DOC/Berkeley_B52383_Owners_User_Manual.pdf
