Sta-Rite HMSE-1FL 57A-HMSE
  1. pin-int

Sta-Rite HMSE-1FL 57A-HMSE

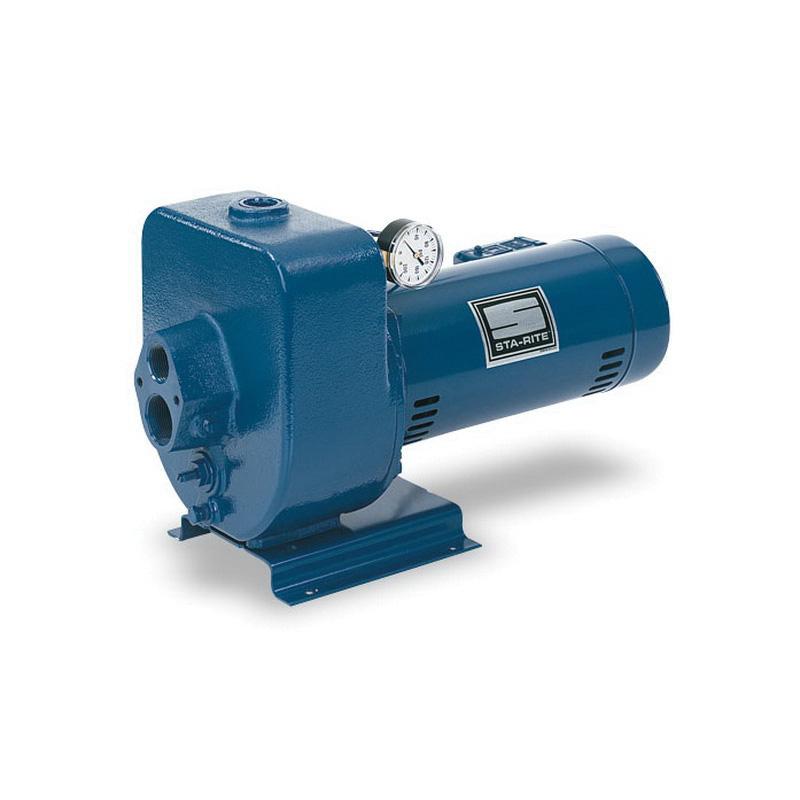

Sta-Rite HMSE-1FL Multi-Stage Deep Well Jet Pump, 115/230 V, 1 hp, 1 ph -Phase

  • Manufacturer: Pentair
  • Brand Name: Sta-Rite
  • Part#: 57A-HMSE
  • MPN: HMSE-1FL
  • UPC: 022315149069
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

HMS Series multi-stage jet pumps are the highest performing pumps available in its category. The HMS Series convertible jets utilize the built-in regulator, offering easier priming and better range of performance from a complete line-of shallow well, 4 in double pipe, 2 in, 3 in single pipe jet packages. Pump may also be operated as a self-priming centrifugal to provide a wide range of high-pressures applications.

Sta-Rite Multi-Stage Deep Well Jet Pump, 1-1/4 in Suction, 1 in Discharge, 115/230 V, 1 hp, 1 ph Phase, 60 Hz, 140 deg F Maximum Temperature, 65 psi Working Pressure, Polycarbonate Impeller, Iron Body, 17-3/4 in L x 9-1/2 in W

SPECIAL_ORDER_ITEM      :      N
Special Order Item      :      N
  • Close grained cast iron pump body is rugged, one-piece unit, specially treated to resist corrosion
  • Automatic pressure regulator features faster acting and quieter, design that eliminates hunting for correct drive pressure
  • Precision molded polycarbonate impeller for perfect balance and ultra smooth for highest performance and efficiency
  • Motor windings has superior insulation materials that protect against excessive moisture and contaminants to ensure prolonged motor life
  • All electrical components are protected from dirt, dust and insects by a dust-proof canopy, ventilating air cannot contaminate vital switching components
  • Balanced rotor is die-cast under high-pressures for uniform performance and greater efficiency, dynamically balanced
  • Shielded, permanently lubricated bearings are extensively tested to ensure extended life and smooth, quiet operation
  • Pump and motor shaft are made of stainless steel for maximum corrosion resistance, one-piece threaded shaft for positive impeller drive and alignment
  • pdfOwners/User Manual https://assets.unilogcorp.com/267/ITEM/DOC/Sta-Rite_HMSF1FL_Owners_User_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Sta-Rite_HMSF1FL_Specification_Sheet.pdf
