Spears® 2621-010 45-2621-010
  1. pin-int

Spears® 2621-010 45-2621-010

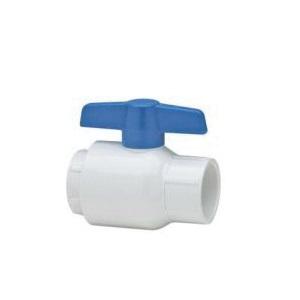

Spears® 2621-010 Utility Ball Valve, 1 in, Threaded, PVC, 150 psi

  • Manufacturer: Spears Manufacturing
  • Brand Name: Spears®
  • Part#: 45-2621-010
  • MPN: 2621-010
  • UPC: 054211517222
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

Spears® Utility Ball Valve, 1 in Nominal, Threaded Connection, 150 psi, 3-3/8 in Inlet to Outlet Length, 2-3/8 in Top to Inlet Center, T-Handle Operator, 160 Cv Flow Coefficient (Cv), Material Standard: ASTM D1784, PVC Body, HDPE/PTFE Seat, PVC Stem, Polypropylene Handle, PVC Ball, EPDM Softgoods, White, Domestic/Import: Domestic

SPECIAL_ORDER_ITEM      :      N
Special Order Item      :      N
  • Chemical and corrosion-resistant PVC or CPVC construction
  • Economical sealed unit
  • SCH 80 full bore design
  • High-impact polypropylene handle
  • Spears® single O-ring Safe-T-Shear® stem design
  • EPDM O-rings
  • PTFE/HDPE floating seat design
  • A high-quality, economical quarter-turn shut-offs valve designed for irrigation, pool and spa and general-purpose applications
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Spears_2622_030_Specification_Sheet.pdf
  • videoVideo Link https://www.youtube.com/watch?v=9hzQlUWbLSE
