K-RAIN® 3202ID-WIFI-KIT 69A-3202WIFI-ID
  1. pin-int

K-RAIN® 3202ID-WIFI-KIT 69A-3202WIFI-ID

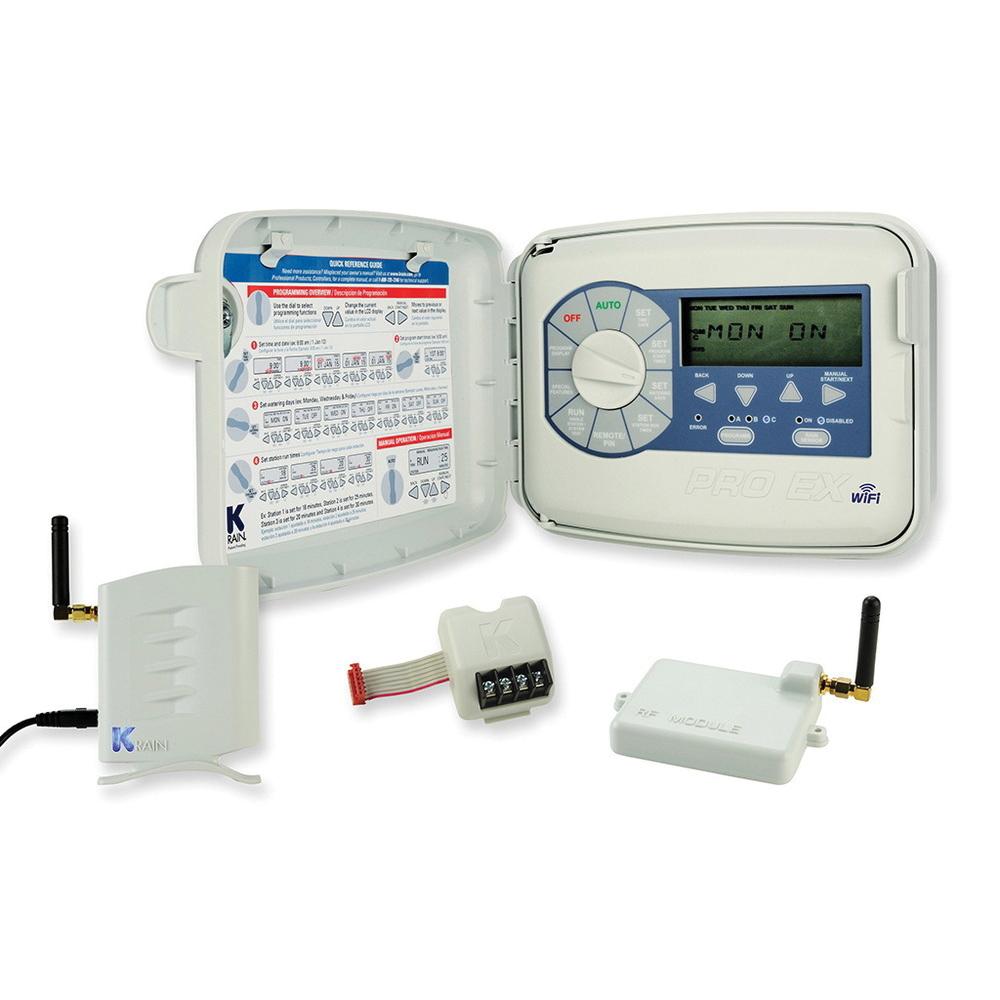

K-RAIN® PRO EX 2.0 3202ID-WIFI-KIT Modular Outdoor Irrigation Controller, 110/240 V Input, 24 V Output, 1 A, 4 -Station

  • Manufacturer: K-Rain
  • Brand Name: K-RAIN®
  • Part#: 69A-3202WIFI-ID
  • MPN: 3202ID-WIFI-KIT
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

This professional-grade Wi-Fi enabled modular irrigation controller delivers high-quality performance and the convenience of controller access through a smartphone, tablet or web browser. Easily and securely sync with homeowners or business Wi-Fi. The PRO EX 2.0 Wi-Fi enabled modular controller is a uniquely configured product, as this one controller can be used in three different manners use it as a full on Wi-Fi controller, a strictly conventional controller or a remote controlled controller. Run zones 4, 8, 12, 14, 16, 18, 22 or 28.

K-RAIN® Modular Outdoor Irrigation Controller, Model: PRO EX 2.0, 110/240 V Input, 24 V Output, 1 A, 110 V Transformer, 4 Stations, LCD Display, 7-3/4 in Length, 10 in Width, 5 in Depth, Additional Information: 1 s to 6 hr Run Time, 3 Programs, 4 Automatic Start Times, Lithium Battery Backup

SPECIAL_ORDER_ITEM      :      N
Special Order Item      :      N
  • Wi-Fi enabled syncs with Wi-Fi to allow functionality through a smartphone, tablet or web browser
  • Patented full program display one screen shows watering days, number of start times, number of stations and special programming
  • Flow sensor ready connects directly, has high/low flow abort settings and provides flow data capture up to 7 days on device and full history on web browser when configured as a Wi-Fi controller
  • Rain sensor and rain/freeze sensor ready allows automated operation to be controlled by sensor
  • RF module connector allows for optional installation of wireless accessories handheld remote, wireless rain sensor and Wi-Fi hub
  • Diagnostic circuit breaker identifies and isolates stations with valve or wiring problems (shorts, faults, valve location) while remaining program continues
  • Hot swappable four station modules simple controller upgrades from 4 to 28 stations with a 14-station module
  • Advanced diagnostics visual and or audible alerts when programming errors or other conditions have been detected and are preventing operation
  • Station delay/overlap programming additional time between stations or dual operation for issues like well recovery, slow closing valves and water hammer
  • Large backlit LCD screen best in class visualization for all installations
  • AM/PM or 24 hr clock settings allows user to choose the time format desired
  • Permanent memory non-volatile memory saves program during power outages
  • Buried valve locate feature helps locate buried valves in field
  • Sensor bypass switch global override of active sensor for all stations
  • Master valve/pump start ready programming for individual stations operation as needed
  • Valve test terminal quick and easy matching of field wires with station during installation
  • Default programming allows program to be saved and recalled without having to reprogram
  • Permanent day off set any day of the week, regardless of programming, as a non-watering day
  • Seasonal adjust quick, easy global adjustment of watering times from 10 to 200% conserves water
  • Built-in level makes leveling the unit easy during install
