Sta-Rite SNF-L 57A-SNF
  1. pin-int

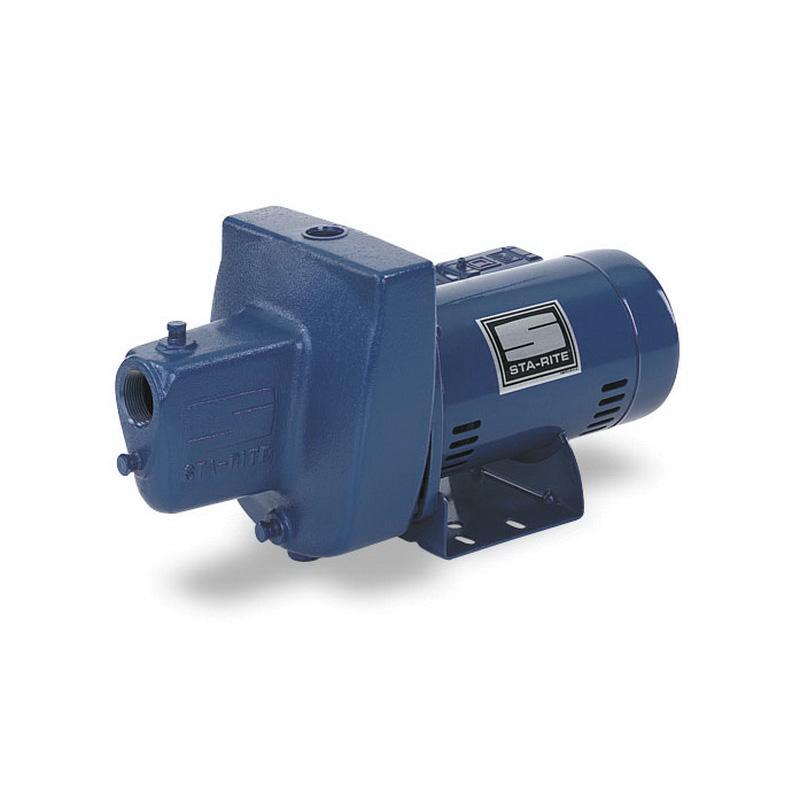

Sta-Rite SNF-L 57A-SNF

Sta-Rite SNF-L Shallow Well Jet Pump, 115/230 V, 1-1/2 hp, 1 ph -Phase

  • Manufacturer: Pentair
  • Brand Name: Sta-Rite
  • Part#: 57A-SNF
  • MPN: SNF-L
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

The ProJet SN Series pumps provide excellent performance with good pressure for wells to 25 ft deep. Self-priming after the priming chamber has been filled with water.

Sta-Rite Shallow Well Jet Pump, 1-1/4 in Suction, 1 in Discharge, 115/230 V, 1-1/2 hp, 1 ph Phase, 60 Hz, 140 deg F Maximum Temperature, 50 psi Working Pressure, Noryl Impeller, Iron Body, 22.4 in L x 9.47 in W

SPECIAL_ORDER_ITEM      :      N
Special Order Item      :      N
  • Close grained cast iron body, drain port provided for easy winterizing
  • Pump primes faster, handles more air with multi-port, precision molded, reinforced polypropylene diffuser
  • Motor windings has superior insulation materials that protect against excessive moisture and contaminants to ensure prolonged motor life
  • Shielded, permanently lubricated bearings are extensively tested to ensure extended life and smooth, quiet operation
  • High-flow version of the 1/2 hp model allows higher flow rates with less horsepower and pressure
  • Pump and motor shaft are made of stainless steel for maximum corrosion resistance, one-piece threaded shaft for positive impeller drive and alignment
  • All electrical components are protected from dirt, dust and insects by a dust-proof canopy, ventilating air cannot contaminate vital switching components
  • Professional quality pressure switch, allows cut-in adjustments
  • pdfOwners/User Manual https://assets.unilogcorp.com/267/ITEM/DOC/Sta-Rite_SNFL_Owners_User_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Sta-Rite_SNFL_Specification_Sheet.pdf
