Spears® 2021-020 SO-41-S2021-020

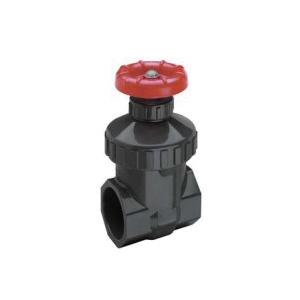

Spears® 2021-020 Gate Valve, 2 in, FPT, PVC, 200 psi
- Manufacturer: Spears Manufacturing
- Brand Name: Spears®
- Part#: SO-41-S2021-020
- MPN: 2021-020
- UPC: 054211518250
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
-
Available at All Branches
-
Price:
This solid, proven design is well-suited for a variety of chemical, industrial and irrigation applications. Spears® gate valves are feature packed with a variety of end connector options. Individual special features are found in each size range 1/2 in through 2 in, 2-1/2 in and 3 in and in the full featured heavy industrial 4 in valve.
Spears® Gate Valve, 2 in Nominal, FPT Connection, 200 psi, Water Media, 3-15/16 in Inlet to Outlet Length, 6-7/8 in Top to Inlet Center, PVC Body, PVC Stem, EPDM Seal, Polypropylene Handle, EPDM Softgoods, Hand Wheel Operator, 333 Cv Flow Coefficient (Cv), 73 deg F, 8-9/16 in H, Domestic/Import: Domestic
| Domestic/Import | : | Domestic |
| Flow Coefficient (Cv) | : | 333 Cv |
| Handle Material | : | Polypropylene |
| SPECIAL_ORDER_ITEM | : | Y |
| Special Order Item | : | Y |
- Heavy bodied PVC
- Tapered wedge with specially designed sealing surface
- Non-rising stem design
- Patented strain equalizing stem/wedge thread
- O-ring stem seals instead of packing - no retightening required
- Positive grip, high impact polypropylene handwheel operator
- Fully serviceable, replaceable components - accessible without valve removal
- EPDM gate valves NSF certified for potable water use
- Suitable for vacuum service
- Assembled with silicone-free, water soluble lubricants
Specification Sheet
