ADS® 24650020IBDW 02G-SL24020
  1. pin-int

ADS® 24650020IBDW 02G-SL24020

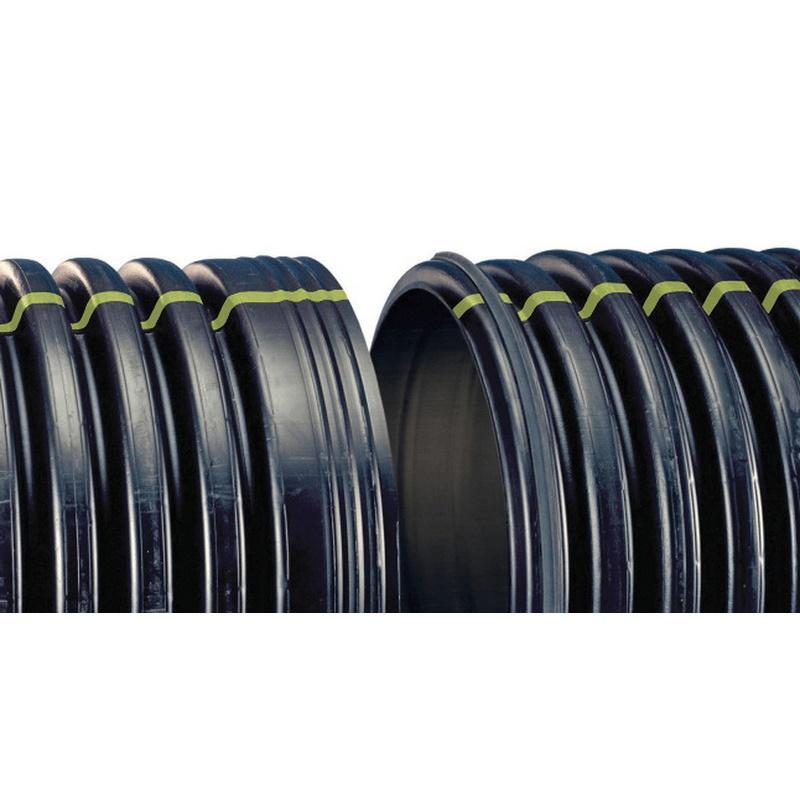

ADS® 24650020IBDW Dual-Wall Pipe, 24 in Nominal Pipe, Bell End x Spigot, 24 in ID, 28 in OD, 20 ft, HDPE

  • Manufacturer: Advanced Drainage Systems
  • Brand Name: ADS®
  • Part#: 02G-SL24020
  • MPN: 24650020IBDW
  • Min. Order Qty: 20
  • Qty. Interval: 20
  • loading Available at Vero Beach
  • loading Available at All Branches

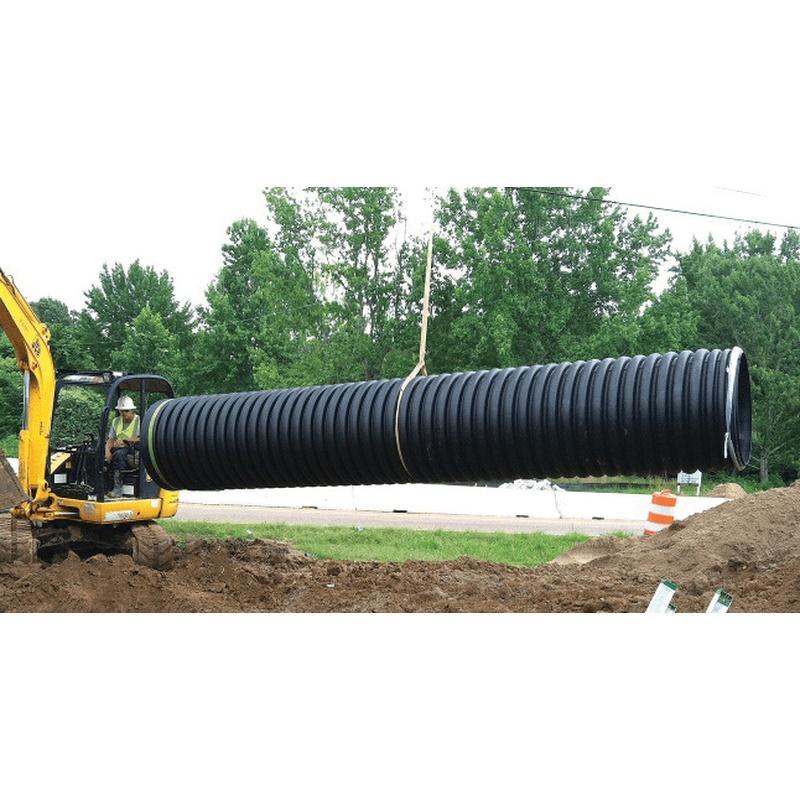

Lightweight, with a bell and spigot joint design and in-line bell design, mega green HDPE pipe is a green building product that can be used in a variety of environmentally conscious projects. Some applications include storm sewers, mining, forestry, industrial waterways, golf, turf and recreation, grain aeration, land reclamation and ditch enclosures.

ADS® Dual-Wall Pipe, 24 in Nominal Pipe, Bell End x Spigot Connection, 24 in Inside Diameter, 28 in Outside Diameter, 20 ft Length, HDPE, Additional Information: Watertight, Solid-Style

SPECIAL_ORDER_ITEM      :      N
Special Order Item      :      N
  • Minimum 60 percent recycled high density polyethylene content
  • Sustainable infrastructure
  • Smooth interior with a Manning's value of 0.012 resulting in increased flow capacity
  • Inert HDPE material is resistant to the effects of chemicals, abrasion, hot soils and effluent
  • Lightweight product for best installed cost for maximizing delivery and installation efficiencies
  • Structurally designed corrugated exterior to support typical construction and long term loading
  • Readily available in convenient locations to service local projects
  • Joint options to meet your application performance requirements including up to watertight joints meeting ASTM D3212
