NDS® 816 86G-M816

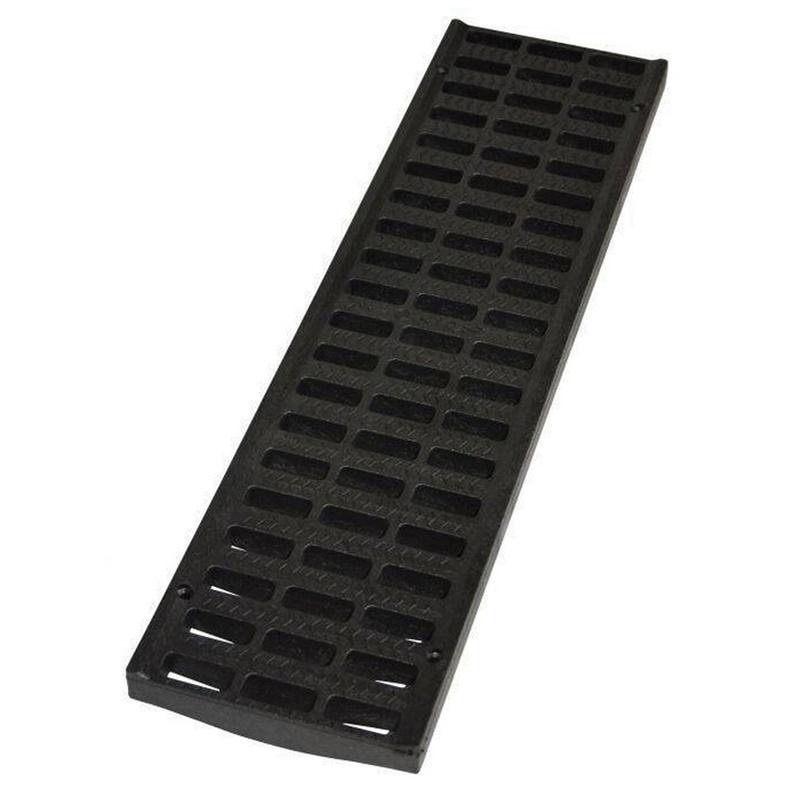

NDS® Pro Series 816 Light Traffic Channel Grate, Flat, 19-1/4 in L, 3/4 in H, HDPE, Black

  • Manufacturer: NORMA Group
  • Brand Name: NDS®
  • Part#: 86G-M816
  • MPN: 816
  • UPC: 052063808161
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

NDS® grates are a proven alternative to traditional concrete drains with UV inhibitors are used to prevent fading and cracking from the sun, chemical-resistant, rust-proof and maintenance-free, lightweight and easy to install. NDS® has a full line of drainage products, fittings and accessories available.

NDS® Light Traffic Channel Grate, Flat Shape, 19-1/4 in Length, 5.19 in Width, 3/4 in Height, 3/8 x 1-1/4 in Opening, Surface Area: 23.52 sq-in/ft, 71.95 gpm Flow Rate, HDPE, Black, For Use With: 820 and 800 5 in Pro Series Channel Drains

Color      :      Black
Flow Rate      :      71.95 gpm
Height      :      3/4 in
Length      :      19-1/4 in
Material      :      HDPE
Opening Size      :      3/8 x 1-1/4 in
Series      :      Pro Series
Shape      :      Flat
Special Order Item      :      N
Suitable For Use With      :      820 and 800 5 in Pro Series Channel Drains
Surface Area      :      23.52 sq-in/ft
Width      :      5.19 in
