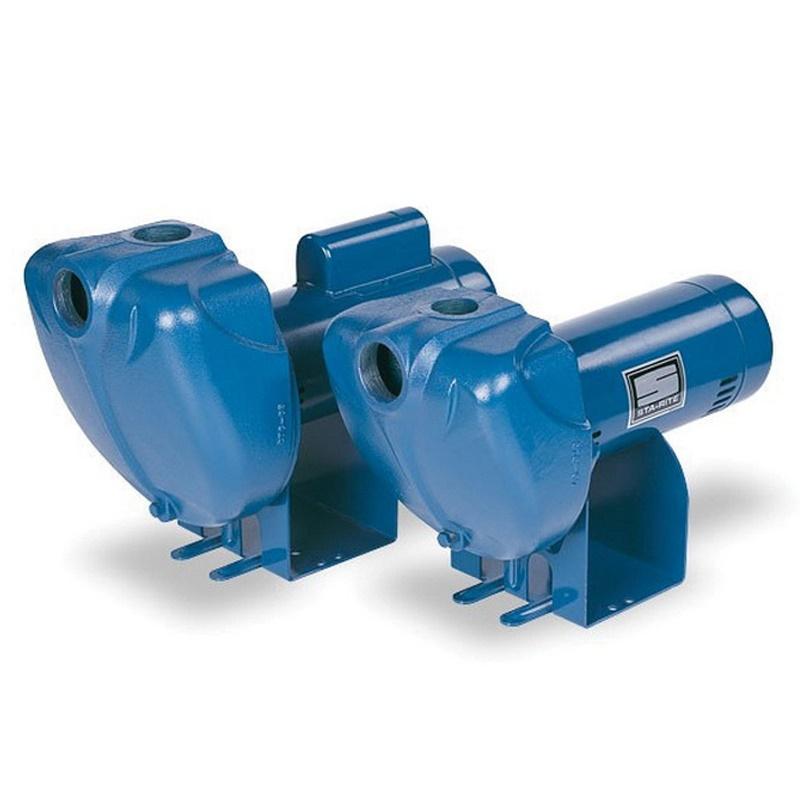

Sta-Rite DS3HE3-01 SO-57A-DS3HE3
Sta-Rite Pro-Storm™ DS3 Series DS3HE3-01 Medium Head Centrifugal Pump, 1 hp, 3 ph -Phase, 208 to 230 V, 10 gpm
- Manufacturer: Pentair
- Brand Name: Sta-Rite
- Part#: SO-57A-DS3HE3
- MPN: DS3HE3-01
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
-
Available at All Branches
-
Price: Call for Price
The Pro-Storm™ Series of cast iron sprinklers offer superior unmatched performance available in 1 to 2-1/2 hp models. All models are available with three-phase motors.
Sta-Rite Medium Head Centrifugal Pump, 208 to 230 V, 60 Hz, 1 hp, 3 ph Phase, 2 in Inlet Connection, 1-1/2 in Outlet Connection, 10 gpm Flow Rate, 40 psi Maximum Pressure, 10 ft Maximum Suction Lift, 92.4 ft Maximum Head, 2-Compartment Motor, Noryl Impeller, Iron Housing, 15.45 in Overall Length, 10 in Overall Width, 13.08 in Overall Height, Additional Information: NPT Suction and Discharge Connection
| Additional Information | : | NPT Suction and Discharge Connection |
| Flow Rate | : | 10 gpm |
| Frequency Rating | : | 60 Hz |
| Impeller Type | : | Noryl |
| Maximum Head | : | 92.4 ft |
| Maximum Pressure | : | 40 psi |
| Maximum Suction Lift | : | 10 ft |
| Motor Type | : | 2-Compartment |
| Outlet Connection Size | : | 1-1/2 in |
| Phase | : | 3 ph |
| SPECIAL_ORDER_ITEM | : | Y |
| Series | : | Pro-Storm™ DS3 Series |
| Special Order Item | : | Y |
| Voltage Rating | : | 208 to 230 V |
- Single body fill priming to 25 ft lifts, in less than 5 min
- Completely interchangeable with the original Sta-Rite DS2 Series
Instruction/Installation Manual
