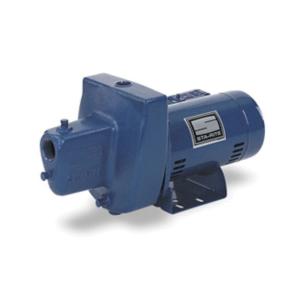

Sta-Rite SND-L 57A-SND
Sta-Rite SN Series SND-L Shallow Well Jet Pump, 115/230 V, 3/4 hp, 1 ph -Phase, 162 ft Max Feet of Head
- Manufacturer: Pentair
- Brand Name: Sta-Rite
- Part#: 57A-SND
- MPN: SND-L
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
-
Available at All Branches
-
Price:
The ProJet SN Series 1/2 to 1-1/2 hp shallow well jet pumps provide excellent performance with strong pressure for wells to 25 ft deep and are self-priming after the priming chamber has been filled with water.
Sta-Rite Shallow Well Jet Pump, 1-1/4 in Suction, 1 in Discharge, 115/230 V, 3/4 hp, 1 ph Phase, 60 Hz, 15 gpm Capacity, Maximum Feet of Head: 162 ft, 140 deg F Maximum Temperature, 50 psi Working Pressure, Noryl Impeller, Iron Body, Carbon-Ceramic/Lexan/Polypropylene/Stainless Steel/Steel, 9.5312 in H x 18.7 in W x 9.4685 in D
| Capacity | : | 15 gpm |
| Discharge Size | : | 1 in |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 3/4 hp |
| Impeller Material | : | Noryl |
| Material | : | Carbon-Ceramic/Lexan/Polypropylene/Stainless Steel/Steel |
| Maximum Feet of Head | : | 162 ft |
| Maximum Temperature | : | 140 deg F |
| Phase | : | 1 ph |
| Series | : | SN Series |
| Special Order Item | : | N |
| Suction Size | : | 1-1/4 in |
| Voltage Rating | : | 115/230 V |
| Working Pressure | : | 50 psi |
- Close grained cast iron body
- Drain port provided for easy winterizing
- Precision molded diffuser - pump primes faster, handles more air with multi-port, precision molded, reinforced polypropylene diffuser
- Motor windings, superior insulation materials protect against excessive moisture and contaminants assure prolonged motor life
- Heavy-duty ball bearings - shielded, permanently lubricated bearings, extensively tested to ensure extended life and smooth quiet operation
- High flow version of the 1/2 hp model allows higher flow rates with less horsepower and pressure
Instruction/Installation Manual
