STENNER PUMPS® PCM5 SO-65A-CAN27339
  1. pin-int

STENNER PUMPS® PCM5 SO-65A-CAN27339

STENNER PUMPS® PCM5 Pump Control Module, ABS, 5.38 in L x 3.63 in W x 1-3/4 in H

  • Manufacturer: Stenner Pump Company
  • Brand Name: STENNER PUMPS®
  • Part#: SO-65A-CAN27339
  • MPN: PCM5
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

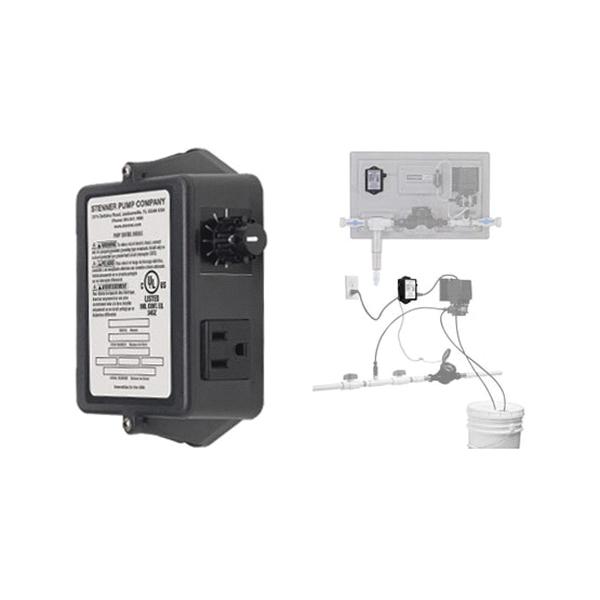

The PCM is a time adjustable controller that powers a fixed output pump. It operates with a pulsing dry contact water meter that sends a signal to the PCM which actuates the pump to deliver the desired dose based upon water volume. It is one of the components in the proportional injection system that also includes the Classic Series single head fixed output pump and a 3/4 in plastic water meter pre-installed on a heavy-duty panel.

STENNER PUMPS® Pump Control Module, 120 V, 1.8 A, ABS, 5.38 in L x 3.63 in W x 1-3/4 in H, For Use With: Constant Pressure (Variable Speed) Well Pumps

Amperage Rating      :      1.8 A
Dimensions      :      5.38 in L x 3.63 in W x 1-3/4 in H
Material      :      ABS
Special Order Item      :      Y
Suitable For Use With      :      Constant Pressure (Variable Speed) Well Pumps
Voltage Rating      :      120 V
  • The knob adjustment has a locking feature
  • 10 ft power cord and jacketed signal input cable
  • Chemical-resistant ABS plastic housing
  • On-time duration set with knob adjustment
  • Microcontroller with TRIAC output timer
  • Non-voltage dry contact, water meter input signal
