Berkeley B86021 SO-57B-B86021

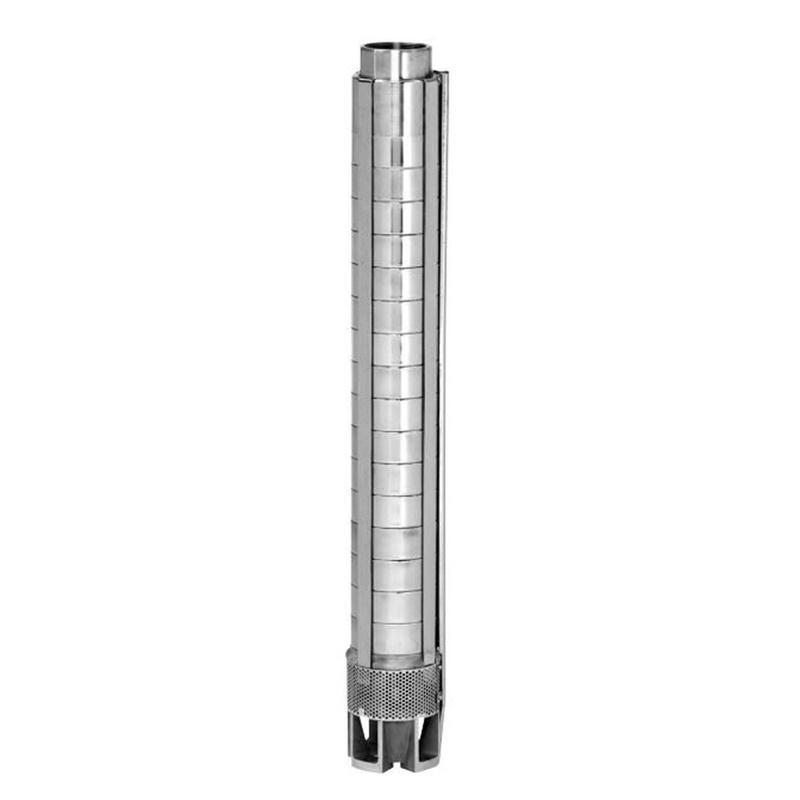

Berkeley 6TS Series 6TS10-230 B86021 Submersible Pump Wet End Only With Check Valve, 10 hp, 230 gpm, Stainless Steel
- Manufacturer: Pentair
- Brand Name: Berkeley
- Part#: SO-57B-B86021
- MPN: B86021
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
-
Available at All Branches
-
Price:
Berkeley Submersible Pump Wet End Only With Check Valve, Model: 6TS10-230, 10 hp, 3450 rpm, 230 gpm Flow Rate, 4 in Discharge, 3 Stages, 625 psi, 68 deg F, 304 Stainless Steel Impeller, Stainless Steel, Additional Information: 6 in Dia Motor, 6 in Dia Pump W/CHECK VLV 4" DISCHARGE
| Additional Information | : | 6 in Dia Motor, 6 in Dia Pump |
| Discharge Size | : | 4 in |
| Pressure Rating | : | 625 psi |
| SPECIAL_ORDER_ITEM | : | Y |
| Series | : | 6TS Series |
| Special Order Item | : | Y |
- The 6TS Series submersible features heavy-duty 304 stainless steel construction that will outperform ordinary fabricated stainless steel pumps in aggressive water conditions
- Heavy-duty, investment cast 304 stainless steel discharge and suction bracket
- Assures perfect pump to motor alignment with any NEMA standard submersible motor
- Discharge assures secure connection to drop pipe
- Wrench flats provide positive grip during installation
- Low profile stainless steel lead guard - aids installation in narrow wells
- Hard chrome-plated top bearing journal - reduces wear in harsh conditions, such as sand
- State of the art design - delivers maximum performance and reliability in the toughest conditions
- 100% lead-free components - meets all US federal guidelines for safe drinking water
- Built-in thrust protection - protects pump during periods of high demand and start-up, prevents pump failure
- Buna® wear rings - improve pump efficiency and durability
Specification Sheet
