Rain Bird® CLP05DAC4 SO-76A-CLP05DAC4
  1. pin-int

Rain Bird® CLP05DAC4 SO-76A-CLP05DAC4

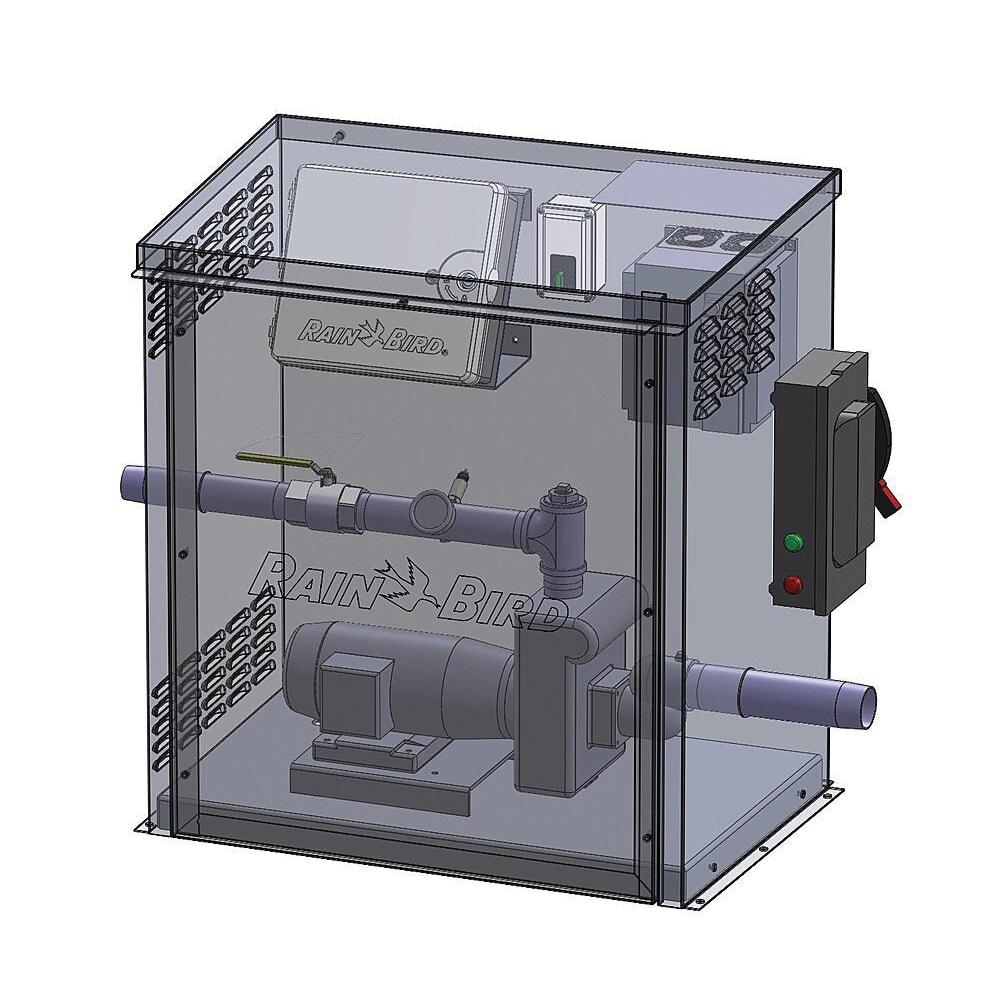

Rain Bird® CLP Series CLP05DAC4 Compact Low Profile VFD Pump Station, 3 in, 49 to 61 psi, Aluminum, Powder-Coated

  • Manufacturer: Rain Bird
  • Brand Name: Rain Bird®
  • Part#: SO-76A-CLP05DAC4
  • MPN: CLP05DAC4
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

Rain Bird's versatile CLP Series pump station can be used in pressure boost, flooded suction or suction-lift applications. The CLP is a complete pump package that is simple to install and operate. It includes an industrial-grade pump, a marine-grade aluminum enclosure, highest quality pump protection and an optional mounting for a Rain Bird® controller. Home owner's associations, small sports fields, schools, parks and a variety of other projects are ideal applications. The compact and durable design of the CLP Series and the ease of installation make it a perfect solution for applications with flows up to 240 gpm. The CLP Series eliminates the hassle of stick building a pump station with non-compatible parts and a makeshift enclosure. Only Rain Bird® provides a totally integrated irrigation solution with UL-listed components and a three-year warranty that dependably delivers healthy, beautiful landscapes while saving time and minimizing maintenance.

Rain Bird® Compact Low Profile VFD Pump Station, CLP Series, 3 in Connection, 208-230 V, 5 hp Power Consumption, 49 to 61 psi, 130 deg F, Aluminum, Finish: Powder-Coated, 48 in L x 40-1/8 in W x 38 in H, Additional Information: 1 or 3-Phase, 240 gpm Flow Rate, Carbon Steel Piping/Aluminum Deck W/ 2" 150 MICRON AUTO BACKWASHING FILTER

Additional Information      :      1 or 3-Phase, 240 gpm Flow Rate, Carbon Steel Piping/Aluminum Deck
Connection Size      :      3 in
Finish      :      Powder-Coated
Material      :      Aluminum
Power Consumption      :      5 hp
Pressure Rating      :      49 to 61 psi
SPECIAL_ORDER_ITEM      :      Y
Series      :      CLP Series
Special Order Item      :      Y
Temperature Rating      :      130 deg F
  • Variable Frequency Drive (VFD) provides a wide range of hydraulic coverage
  • Pump Start Relay included (24 VAC/VDC) to make the station ready to accept controller signals
  • Marine-grade aluminum deck and enclosure to stand up to the elements
  • Powder-coated steel piping
  • Isolation valve for easy maintenance and priming
  • Manual switch provides the user full control and override capabilities
  • 3 in grooved discharge, 3 in grooved intake
  • Liquid filled suction and discharge gauges for fast set point setting and troubleshooting
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Rain_Bird_CLP05DAC4_Specification_Sheet.pdf
  • videoVideo Link 1 https://www.youtube.com/embed/AwlaYzY-6Ys
  • videoVideo Link https://www.youtube.com/embed/1OhTwji0gMY
