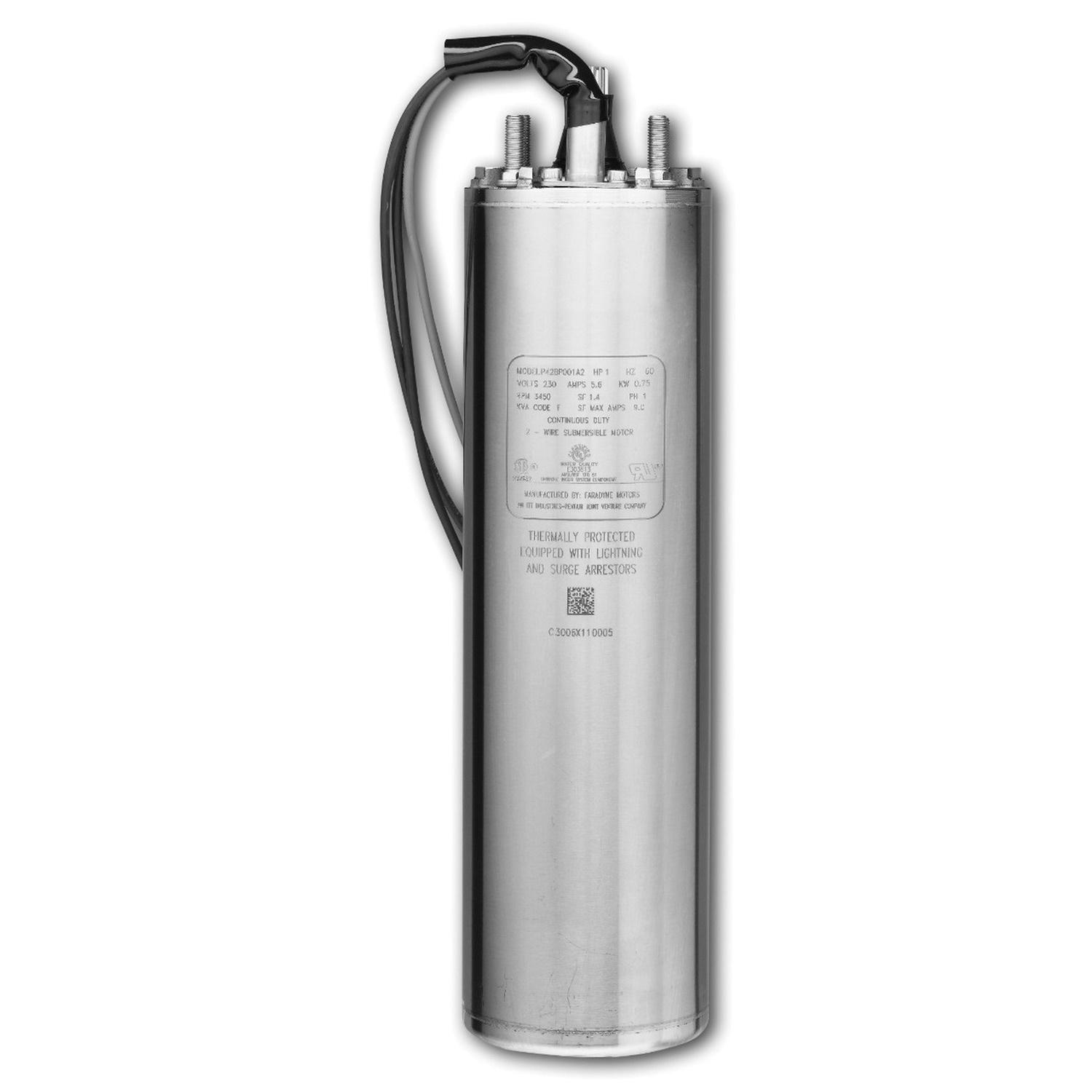

Sta-Rite P42B0015A2-01-C SO-58-P42B0015A2-C
Sta-Rite XE Series P42B0015A2-01-C Permanent Split Capacitor Submersible Motor, 1-1/2 hp, 1 ph Phase, 230 V, 43 A
- Manufacturer: Pentair
- Brand Name: Sta-Rite
- Part#: SO-58-P42B0015A2-C
- MPN: P42B0015A2-01-C
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
-
Available at All Branches
-
Price: Call for Price
The Pentek® XE Series 4 in submersible high-thrust motors are built with the latest design, manufacturing and testing technology. They feature laser-welded 304L stainless steel construction, higher thrust capacities and higher efficiencies. The Pentek® XE Series submersible motors incorporate "encapsulated, epoxy stator design," and professional-grade Class F insulation provides longer life in harsh environments. Each motor is 100% factory pressure and run tested to support our quality standards.
Sta-Rite Permanent Split Capacitor Submersible Motor, XE Series, 1-1/2 hp, 230 V, 43 A, 1.1 kW, 1 ph Phase, 60 Hz, 2 Wires, 3-3/4 in Overall Diameter, 14.9 in Overall Length, Thrust Bearing, 86 deg F, 304 Stainless Steel Body, Additional Information: 700 lb Capacity
| Additional Information | : | 700 lb Capacity |
| Body Material | : | 304 Stainless Steel |
| Number of Wires | : | 2 |
| Overall Diameter | : | 3-3/4 in |
| Overall Length | : | 14.9 in |
| SPECIAL_ORDER_ITEM | : | Y |
| Series | : | XE Series |
| Special Order Item | : | Y |
- #700 rated Kingsbury-type thrust bearings are standard on all HPs, allowing for higher thrust loads, providing many years of trouble-free service under sever-duty operation
- Two-wire permanent split capacitor design insures quiet operation and improved operating efficiency
- All stainless steel exterior
- Professional-grade Class F compliant motor insulation allows for longer service life
- 100% factory pressure and run tested
- Equipped with surge arrestor
- Automatic thermal protection on 1/2 thru 1 hp models
Specification Sheet
