Liberty Pumps® LEH102M2-2 60A-L-LEH102M2-2
  1. pin-int

Liberty Pumps® LEH102M2-2 60A-L-LEH102M2-2

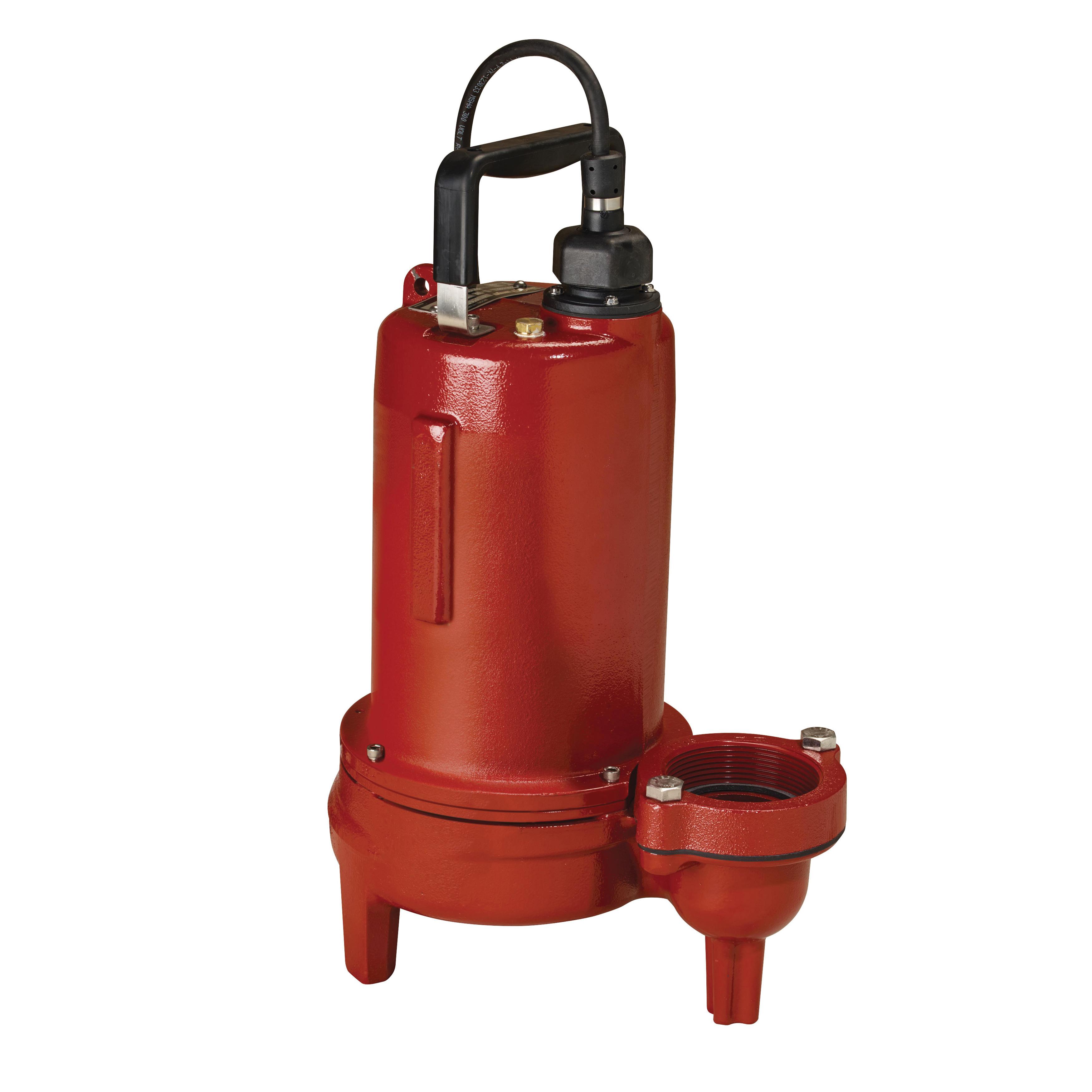

Liberty Pumps® LEH100 Series LEH102M2-2 Submersible Sewage Pump, 208 to 230 VAC, 12 A, 60 Hz, 1 hp, 200 gpm, Cast Iron

  • Manufacturer: Liberty Pumps
  • Brand Name: Liberty Pumps®
  • Part#: 60A-L-LEH102M2-2
  • MPN: LEH102M2-2
  • UPC: 671812108446
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
    • Available at All Branches

1 HP, Sewage pump, 1 PH, 208-230V, 25" Cord, 2" Discharge, Manual

Liberty Pumps® Submersible Sewage Pump, LEH100 Series, 208 to 230 VAC, 12 A, 60 Hz Frequency, HP Rating: 1 hp, 3450 rpm Speed, 200 gpm Flow Rate, 1 ph, 25 ft Cord Length, Maximum Feet of Head: 53 ft, 248 deg F, Dimensions: 12.5 in L x 12.5 in W x 18.9 in H, Cast Iron, Powder-Coated

Amperage Rating      :      12 A
Cord Length      :      25 ft
Dimensions      :      12.5 in L x 12.5 in W x 18.9 in H
Finish      :      Powder-Coated
Flow Rate      :      200 gpm
Frequency Rating      :      60 Hz
HP Rating      :      1 hp
Material      :      Cast Iron
Maximum Feet of Head      :      53 ft
Phase      :      1 ph
Series      :      LEH100 Series
Special Order Item      :      N
Speed Rating      :      3450 rpm
Temperature Rating      :      248 deg F
Voltage Rating      :      208 to 230 VAC
  • Rugged two-vane, semi-open cast iron impeller
  • Cast iron housings and volute
  • Stainless and brass fasteners
  • Oil filled, hermetically sealed motor
  • 17-4 PH stainless steel shaft
  • 2 in flanged discharge
  • Permanently lubricated upper and lower ball bearings
  • Unitized shaft seal
