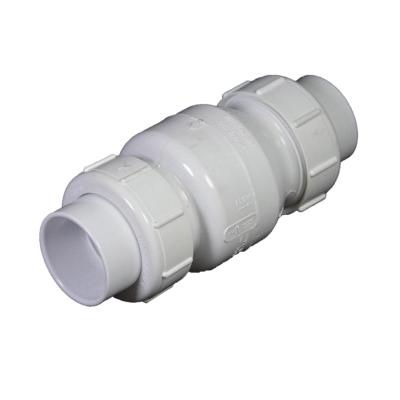

NDS® 1700 Series 1720-20 True Union Swing Check Valve, 2 in, Slip, Lead-Free, PVC

  • Manufacturer: NORMA Group
  • Brand Name: NDS®
  • Part#: 53-1720-20
  • MPN: 1720-20
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

NDS® True Union Swing Check Valve, 2 in Nominal, Slip Connection, 125 psi, 72 deg F, Water Media, 9.69 in Inlet to Outlet Length, PVC Body, EPDM Seal, Lead-Free, White, 4.24 in H, Domestic/Import: Domestic

Body Material      :      PVC
Color      :      White
Connection Type      :      Slip
Dimensions      :      4.24 in H
Domestic/Import      :      Domestic
Inlet to Outlet Length      :      9.69 in
Lead-Free/Contains Lead      :      Lead-Free
Media      :      Water
Nominal Size      :      2 in
Pressure Rating      :      125 psi
Seal Material      :      EPDM
Series      :      1700 Series
Special Order Item      :      N
Temperature Rating      :      72 deg F
  • No metallic parts, corrosion-resistant
  • Full flow design
  • Angle seat and weighted flapper designed for low pressure seal
  • PVC weighted and shielded flapper will retain backpressure up to 125 psi
  • Iron pipe sized 1/2 to 4 in
  • Compression-style for IPS-sized plastic or metal pipe 1-1/4 to 3 in
  • Compression eNDS® can be used as union connections
  • Designed for both horizontal and vertical use
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/NDS_1720_15_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/NDS_1720_15_Specification_Sheet.pdf
