ADS® 18" HP Storm SO-02G-HP18020

ADS® 18" HP Storm Drainage Pipe, Dual Wall, 18.2 in ID, 21.4 in OD, 20 ft L, Bell, Spigot End, Polypropylene

  • Manufacturer: Advanced Drainage Systems
  • Brand Name: ADS®
  • Part#: SO-02G-HP18020
  • MPN: 18" HP Storm
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

HP Storm offers up to 100 percent greater pipe stiffness over traditional plastic pipe, which increases safety and service life in installations that demand high performance. The extended bell and spigot joint design adds an additional factor of safety within each joint to ensure watertight performance and long term design service life. HP Storm pipe meets or exceeds ASTM F2881 and AASHTO M330. From a federal perspective, polypropylene (PP) pipe is approved for use by the Army Corps of Engineers for storm drainage applications under Section 33 40 00 (Unified Facilities Guide Specifications). The Federal Aviation Authority (FAA) permits polypropylene pipe under airfield pavements per Item D-701 and as pipe for storm drains and culverts in AC 150/5370-10G (Standards for Specifying Construction of Airports). Additionally, the American Railway Engineering and Maintenance-of-Way Association (AREMA) approves polypropylene pipe in storm drainage applications under railroads.

ADS® Drainage Pipe, Dual Wall, 18.2 in ID, 21.4 in OD, 20 ft Length, Bell, Spigot End Style, Polypropylene, SDR 35, SDR 26 Standard Dimension Ratio (SDR), 10.8 psi Maximum Operating Pressure, Additional Information: 1120 ft Truckload Footage

Additional Information      :      1120 ft Truckload Footage
End Style      :      Bell, Spigot
Inside Diameter      :      18.2 in
Length      :      20 ft
Maximum Operating Pressure      :      10.8 psi
Outside Diameter      :      21.4 in
SPECIAL_ORDER_ITEM      :      Y
Special Order Item      :      Y
Standard Dimension Ratio (SDR)      :      SDR 35, SDR 26
Wall Type      :      Dual
  • Increased stiffness results in an additional safety factor against construction loading and poor installations

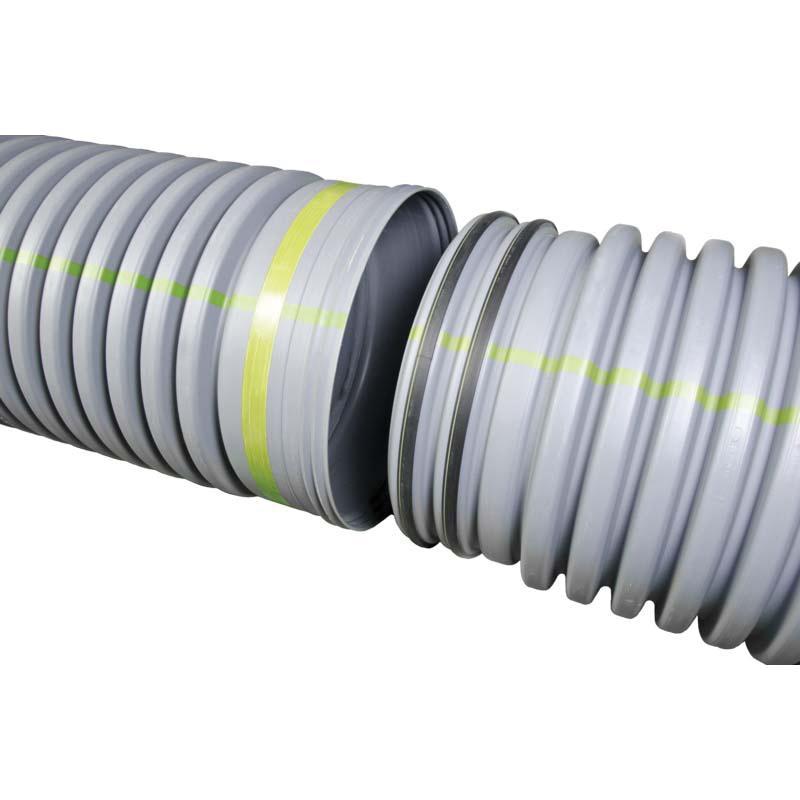

  • The extended bell and spigot joint meets ASTM D3212 and ensures lab and field testable watertight performance
  • Smooth interior with a Manning's value of 0.012, resulting in increased flow capacity
  • Inert PP material is resistant to the effects of chemicals, abrasion, hot soils, and effluent
  • Lightweight product for best installed cost to maximize delivery and installation efficiencies
  • Readily available in convenient locations to service local projects
