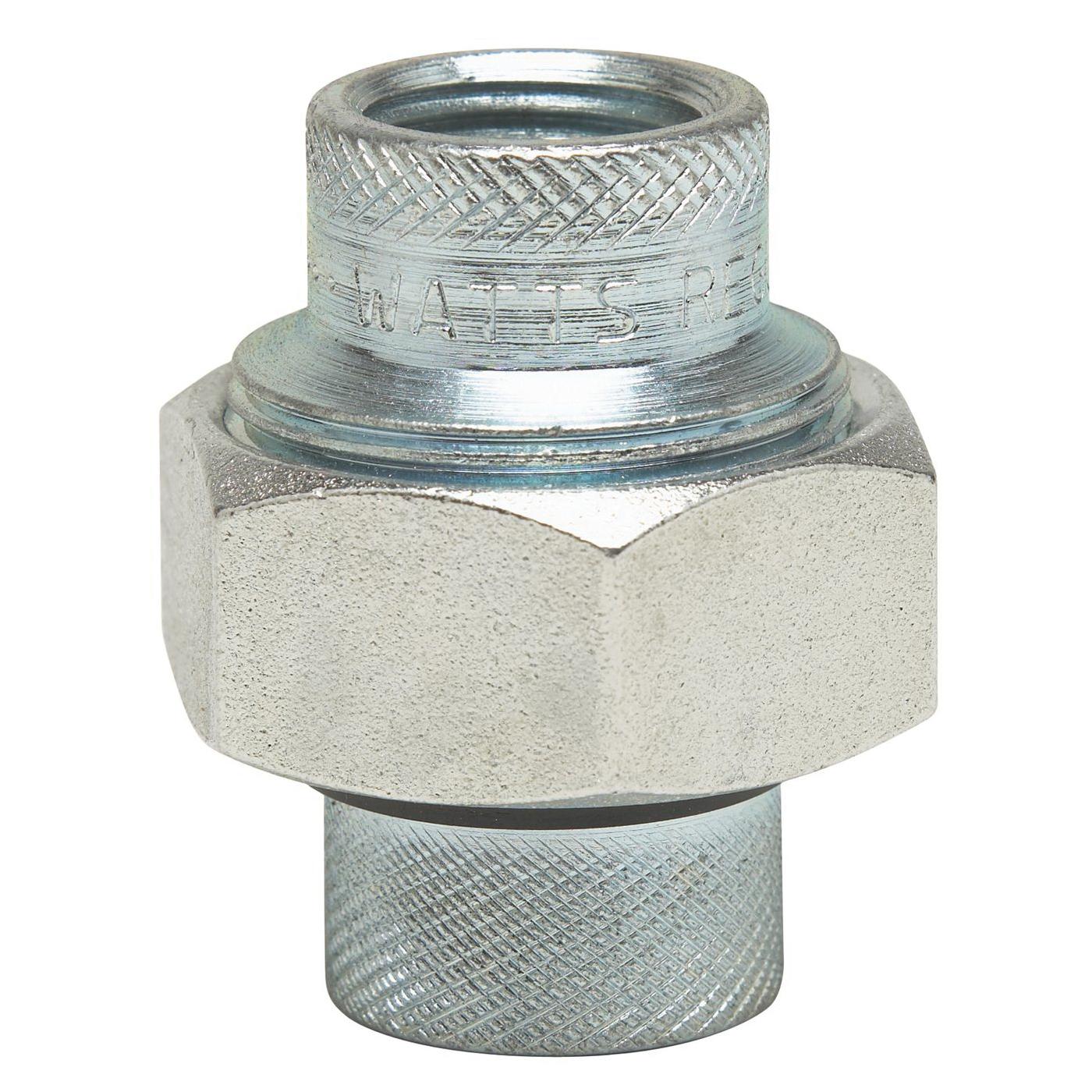

WATTS® 3004 78P-3004
WATTS® 3004 Dielectric Union, 1-1/2 in FIPT x 1-1/2 in FIPT, Iron/Steel
- Manufacturer: Watts Water Technologies
- Brand Name: WATTS®
- Part#: 78P-3004
- MPN: 3004
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
-
Available at All Branches
-
Price:
Streamline ABS DWV fittings are manufactured to exact specifications to ensure the best fit in the industry. Each fitting delivers excellent rigidity and smooth interior walls to improve flow, inhibit scaling and provide superior resistance to chemicals and corrosion. Our stringent quality control protocols guarantee that our fittings fit and perform flawlessly, piece after piece. All fittings are packaged in standard industry carton quantities and dimensions and utilize an intuitive, easily interpreted style numbering system.
WATTS® Dielectric Union, Union Fitting, 1-1/2 in Connection Size 1, Connection Type 1: FIPT, 1-1/2 in Connection Size 2, Connection Type 2: FIPT, FPT|FPT Connection, Iron/Steel, Material Construction: Galvanized Steel/Malleable Iron, 250 psi, 2-3/4 in H x 3-1/2 in W, 180 deg F
| Connection Size 1 | : | 1-1/2 in |
| Connection Size 2 | : | 1-1/2 in |
| Connection Type 1 | : | FIPT |
| Connection Type 2 | : | FIPT |
| Connection Type | : | FPT|FPT |
| Dimensions | : | 2-3/4 in H x 3-1/2 in W |
| Fitting Type | : | Union |
| Material Construction | : | Galvanized Steel/Malleable Iron |
| Material | : | Iron/Steel |
| Pressure Rating | : | 250 psi |
| Temperature Rating | : | 180 deg F |
- Designed and manufactured to the highest quality standards
- Individually factory certified to withstand a minimum of 600 V on a dry line with no flashover
- Polysulfone insulator
- Buna-N gasket
- For hot water storage tanks, water and air conditioners, processing tanks, steam, gas and water piping
