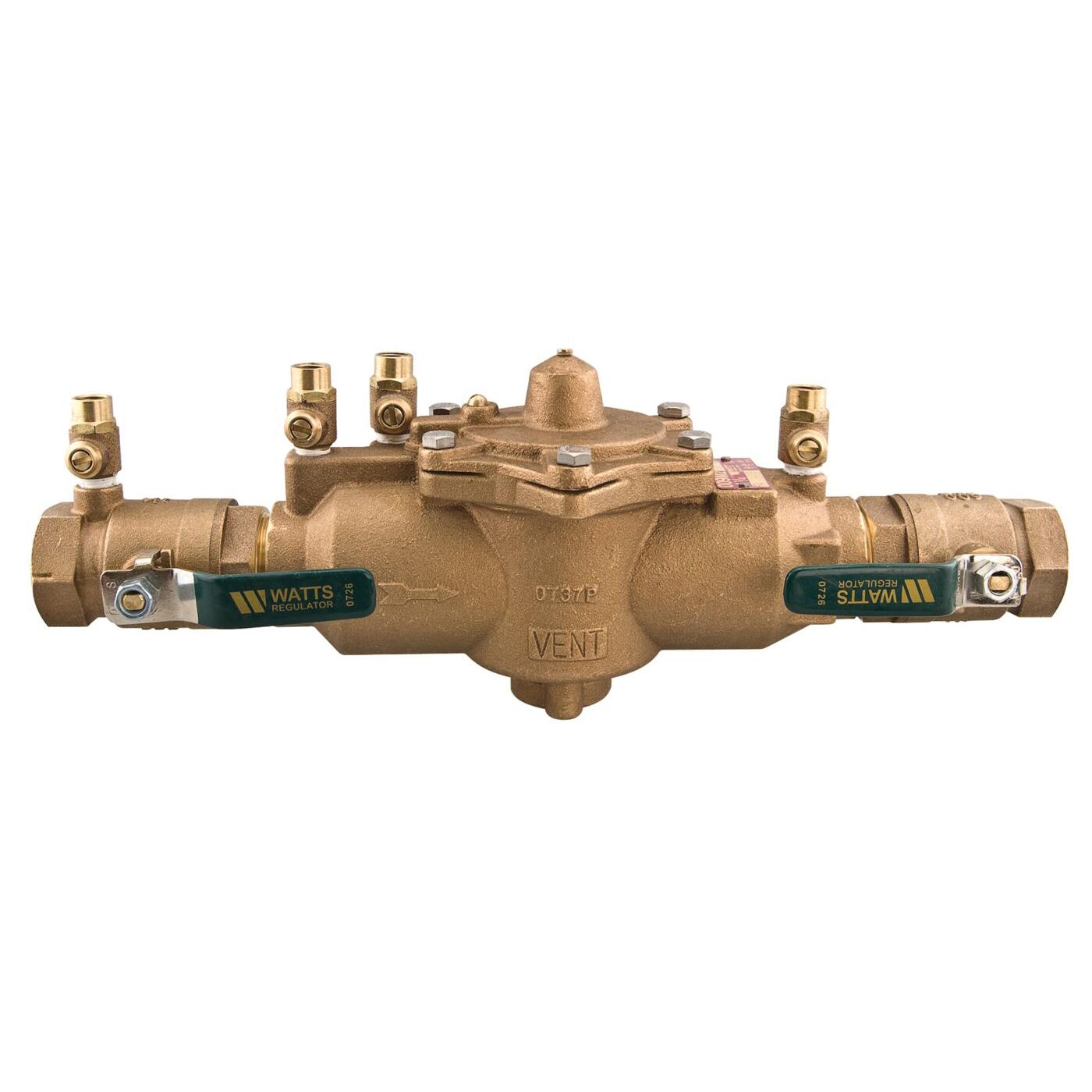

WATTS® 009M2QT 1 56B-810-WA

This 1 inch reduced pressure zone assembly backflow preventer helps prevent the flow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and for contaminants at the service line entrance. This assembly consists of a bronze body, NPT end connections, quarter turn ball valve shutoffs with tee handles, top mounted test cocks, two in-line independent check valves, captured springs, and replaceable check seats with an internal relief valve for reduced space requirements.

WATTS® Reduced Pressure Zone Assembly, 009 Series, 1 in, Bronze, Additional Information: Silicone Disc, FNPT Connection, Engineered Plastic Seat, Continuous Pressure, 33 to 180 deg F Temperature Rating, 175 psi Maximum Working Pressure

• Bronze body construction for durability
• NPT inlet and outlet connections
• Quarter turn full port resilient seated ball valve shutoffs
• Single access cover and modular check construction for the ease of maintenance
• Large body passages provides a low pressure drop
• Captured springs for safe maintenance
• Internal relief valve for reduced installation clearances
• Replaceable seats for an economical repair
• Test cocks are screwdriver slotted

• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/WATTS_009M2QT_1_Instruction_Installation_Manual.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/WATTS_009M2QT_1_Specification_Sheet.pdf
