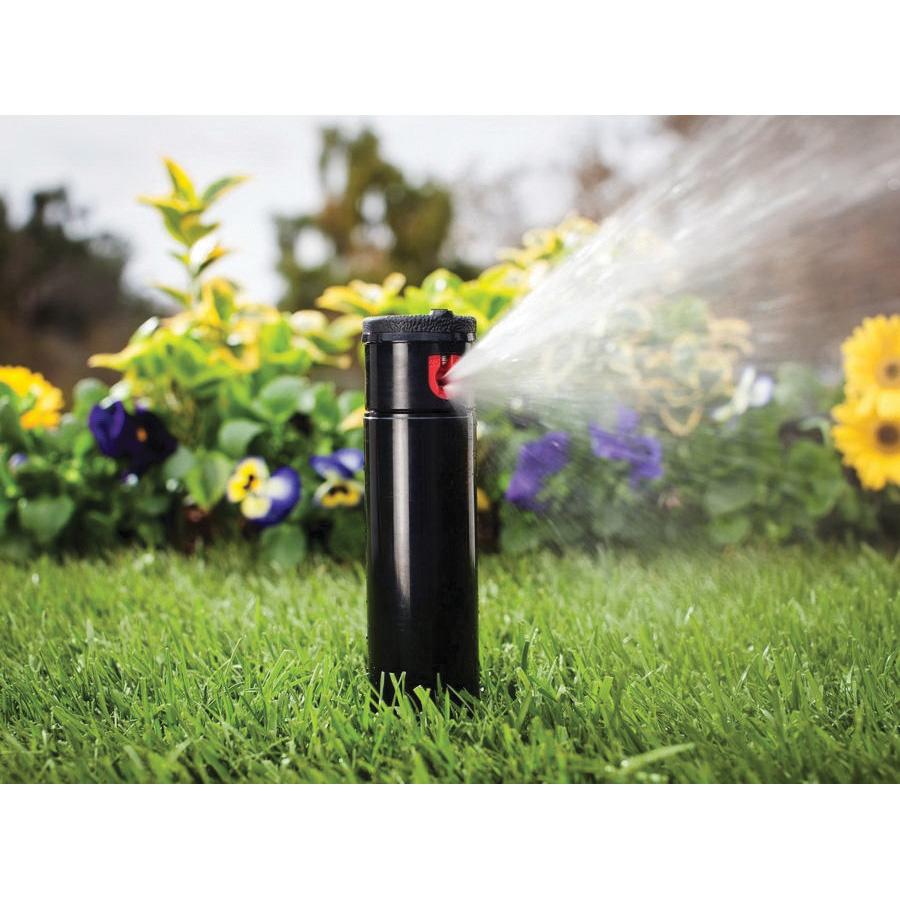

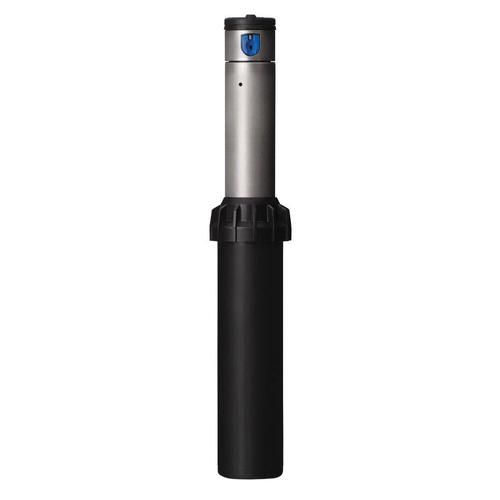

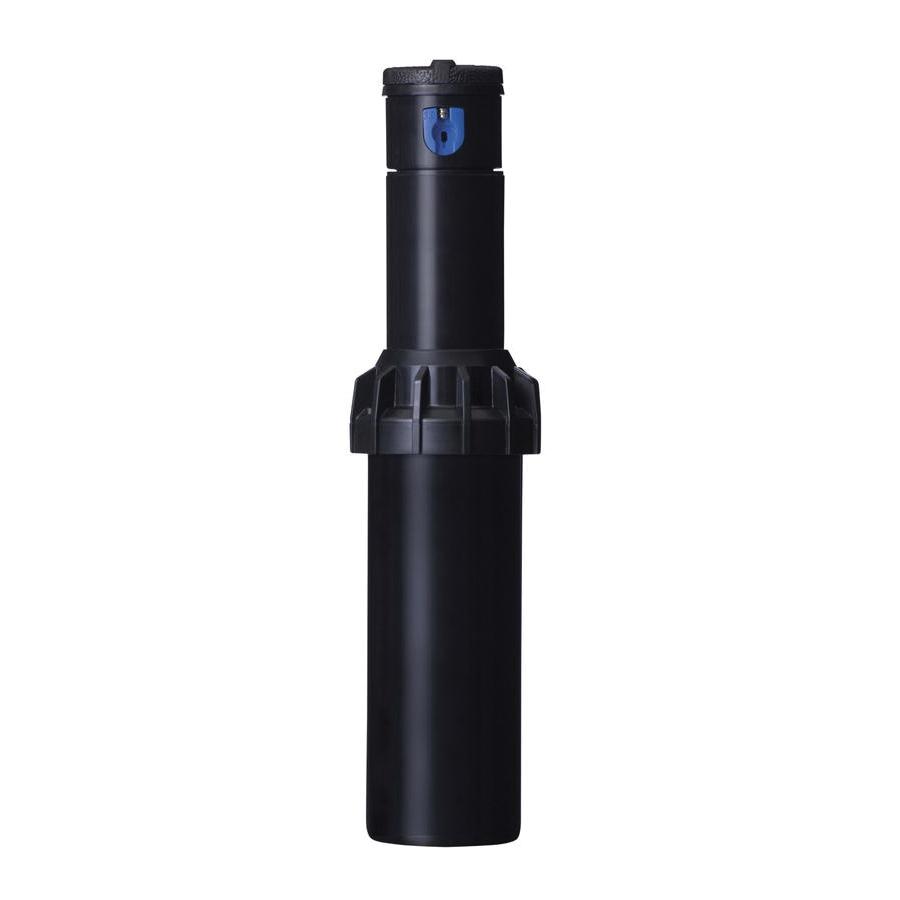

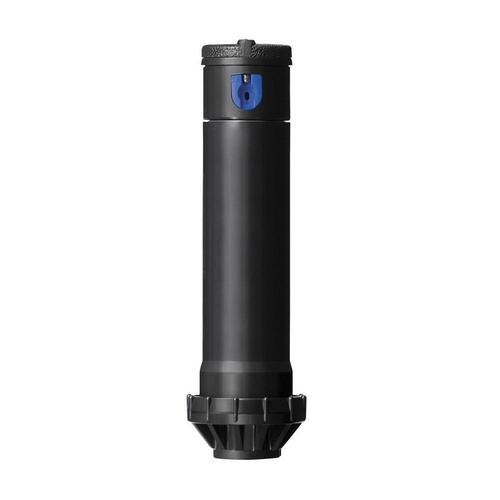

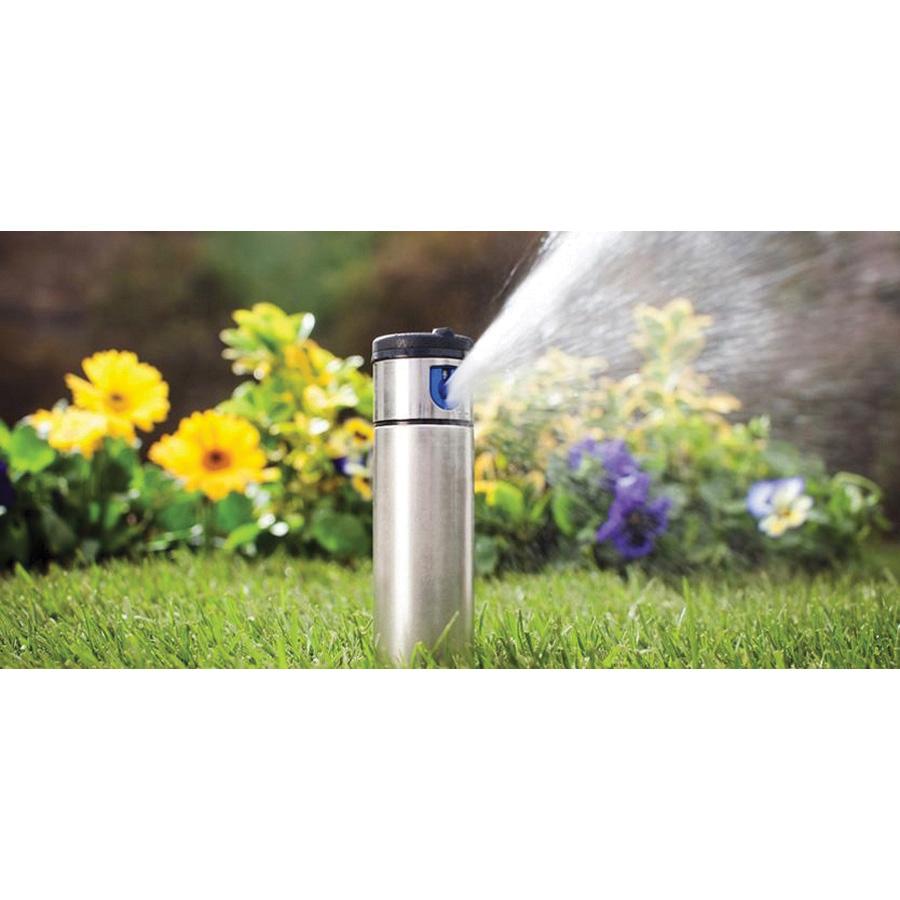

Hunter® I-20-06-PRB 70A-I-20-06PRB
Hunter® I-20 PRB Series I-20-06-PRB Rotor, 4.9 to 14 m Operating, 3/4 in, NPT, Stainless Steel
- Manufacturer: HUNTER INDUSTRIES
- Brand Name: Hunter®
- Part#: 70A-I-20-06PRB
- MPN: I-20-06-PRB
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
-
Available at All Branches
-
Price:
The Hunter® PRB rotors allow the nozzles to operate at peak efficiency, saving up to 25% more water. Having the pressure regulator in the body allows it to remain in place and functional even if the original riser is removed and replaced for service.
Hunter® Rotor, I-20 PRB Series, 4.9 to 14 m Operating, Adjustable Spray Pattern, 25 deg Trajectory Angle, 3.1 bar, 1.2 to 36 Lpm Flow Rate, Precipitation Rate: 10 mm/hr, 6 in Pop-Up Height, 3/4 in Connection, NPT Connection, Stainless Steel, 9-7/8 in Overall Height
| Connection Size | : | 3/4 in |
| Connection Type | : | NPT |
| Flow Rate | : | 1.2 to 36 Lpm |
| Material | : | Stainless Steel |
| Operating Range | : | 4.9 to 14 m |
| Overall Height | : | 9-7/8 in |
| Pop-Up Height | : | 6 in |
| Precipitation Rate | : | 10 mm/hr |
| Pressure Rating | : | 3.1 bar |
| Series | : | I-20 PRB Series |
| Spray Pattern | : | Adjustable |
| Trajectory Angle | : | 25 deg |
- Factory installed rubber cover
- Through the top arc adjustment
- Quick check arc mechanism
- Water lubricated gear-drive
- Automatic arc return
- Non-strippable drive
- Headed and slotted set screw
- Stainless steel riser
- 4.5 cm exposed diameter
